Engine Block Mounting Parts for BMW 3 Series E92 LCI M3

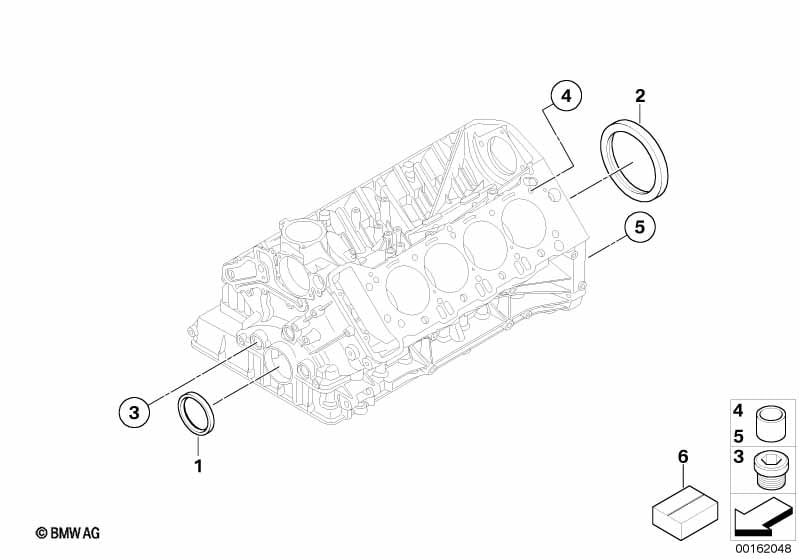

This Engine Block Mounting Parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI M3. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shaft seal | 48X65X10 | 1 | 11217838072 | $36.04 | Shop at ECS Tuning | ||||
| 02 | Shaft seal | 125X100X12 | 1 | 11217838071 | $60.10 | Shop at ECS Tuning | ||||
| 03 | Screw plug with O-ring | M22X1,5-ZNS3 | 3 | 33117525064 | $3.91 | Shop at ECS Tuning | ||||
| 04 | Dowel | D=12,5MM | 4 | 11121726241 | $1.62 | Shop at ECS Tuning | ||||
| 05 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 06 | Gasket Set Engine Block Asbesto Free | 1 | 11110429839 | $205.96 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E92 LCI M3 Engine Block Mounting Parts?
- This technical diagram illustrates the Engine Block Mounting Parts within the Engine group for the 3 Series E92 LCI M3. It provides a detailed exploded view of the components, identifying key parts such as the Shaft seal (Part #11217838072).
- Which models use the hardware listed in this Engine Block Mounting Parts?
- The hardware and components featured in the Engine Block Mounting Parts are specific to the 3 Series E92 LCI M3. These technical specifications ensure that parts like the Shaft seal (11217838072) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine Block Mounting Parts assembly?
- Each item in the Engine Block Mounting Parts corresponds to the numbered list below the illustration. For the 3 Series E92 LCI M3, you can identify the Shaft seal by locating its position on the schematic, which then links to the official BMW part number 11217838072 for the Engine section.
