Cylinder Head for BMW 3 Series E92 LCI M3

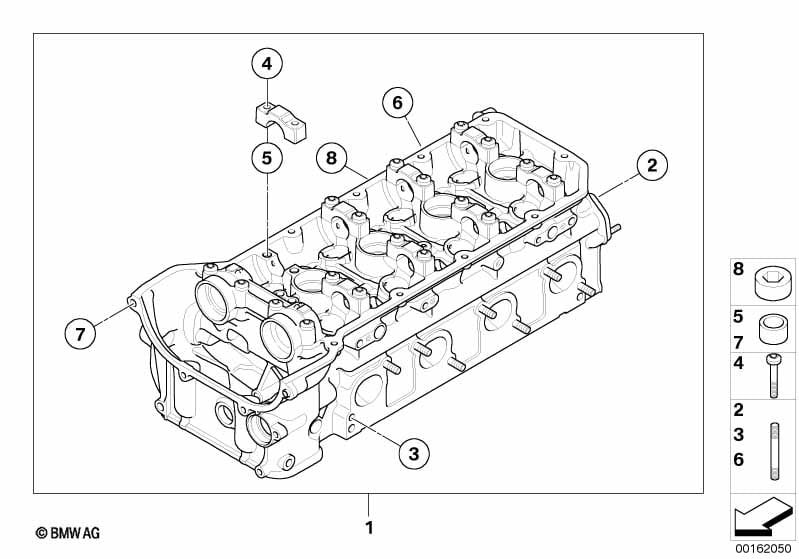

This Cylinder Head technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI M3. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder Head | ZYL. 1-4 | 1 | 11127838137 | $3593.20 | Shop at ECS Tuning | ||||
| 01 | Cylinder Head | ZYL. 5-8 | 1 | 11127838147 | $3593.20 | Shop at ECS Tuning | ||||
| 02 | Stud bolt | M8X35-10.9-PHR | 2 | 07129908155 | $0.96 | Shop at ECS Tuning | ||||
| 03 | Stud bolt | M8X35-10.9-PHR | 8 | 07129908155 | $0.96 | Shop at ECS Tuning | ||||
| 04 | ISA screw | M7X40,4 | 20 | 11127835168 | $1.07 | Shop at ECS Tuning | ||||
| 05 | Dowel | D=8,7MM | 16 | 11127833232 | $3.47 | Shop at ECS Tuning | ||||
| 06 | Stud bolt | M6X35-ZNNIV SI | 8 | 07129905828 | $0.27 | Shop at ECS Tuning | ||||
| 07 | Dowel | D=8,3MM | 2 | 11121715657 | $1.25 | Shop at ECS Tuning | ||||
| 08 | Screw plug | M26X1,5 | 1 | 11127519569 | $5.35 | Shop at ECS Tuning |
