Oil Pan for BMW V8 502 (1963)

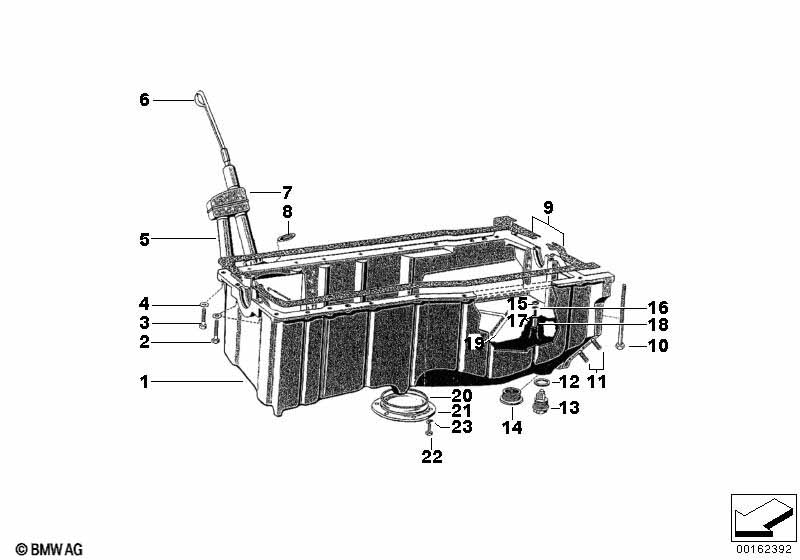

This Oil Pan technical drawing provides a detailed breakdown of the assembly for the V8 502. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1963.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 16 | Wave washer | B6 | 5 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 22 | Hex bolt | M6X18 | 6 | 23317545769 | $0.67 | Shop at ECS Tuning | ||||
| 23 | Wave washer | B6 | 6 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW V8 502 Oil Pan?
- This technical diagram illustrates the Oil Pan within the Engine group for the V8 502 produced during 1963. It provides a detailed exploded view of the components, identifying key parts such as the Wave washer (Part #07119932072).
- Which models use the hardware listed in this Oil Pan?
- The hardware and components featured in the Oil Pan are specific to the V8 502 produced during 1963. These technical specifications ensure that parts like the Wave washer (07119932072) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Oil Pan assembly?
- Each item in the Oil Pan corresponds to the numbered list below the illustration. For the V8 502, you can identify the Wave washer by locating its position on the schematic, which then links to the official BMW part number 07119932072 for the Engine section.
