Turbocharger for BMW 1 Series E87 LCI 123d (2011)

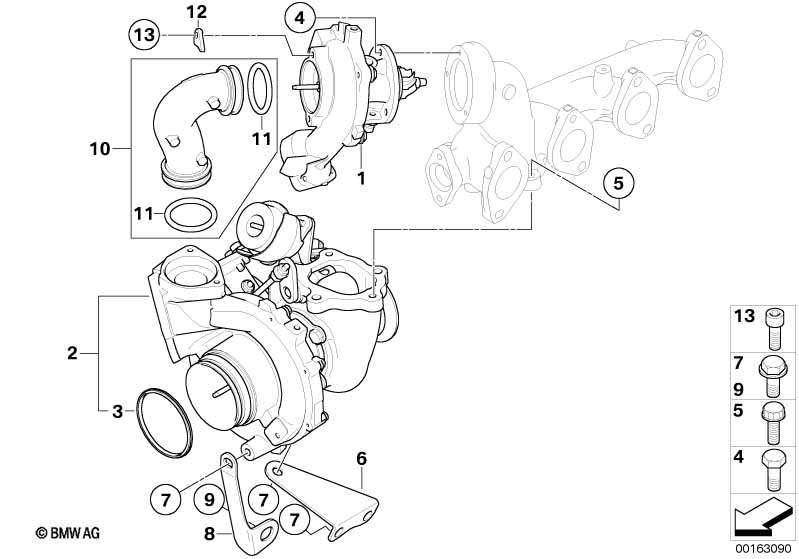

This Turbocharger technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 123d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Please always observe repair instructions 11 65 020! |
||||||||||
| 01 | Turbo charger | 1 | 11657804637 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Gasket Asbestos Free | 2 | 11422246091 | $1.19 | Shop at ECS Tuning | |||||
| -- | Return pipe | 1 | 11427803608 | Shop at ECS Tuning | ||||||
| 02 | Turbo charger | 1 | 11657804638 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Gasket Asbestos Free | 2 | 11422246091 | $1.19 | Shop at ECS Tuning | |||||
| -- | Return pipe | 1 | 11427803609 | Shop at ECS Tuning | ||||||
| 03 | Preformed seal | 1 | 11617796622 | $6.65 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M6X12 | 3 | 11657804866 | Shop at ECS Tuning | |||||
| 05 | Screw | M8X22 | 5 | 11657804756 | Shop at ECS Tuning | |||||
| 06 | Support | 1 | 11657797784 | Shop at ECS Tuning | ||||||
| 07 | Hex bolt with washer | M8X16 | 4 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 08 | Support | 1 | 11657800606 | Shop at ECS Tuning | ||||||
| 09 | Hex bolt | M12X20 | 1 | 07119904488 | $3.02 | Shop at ECS Tuning | ||||
| 10 | Connection pipe | 1 | 11657804639 | Shop at ECS Tuning | ||||||
| 11 | O-ring | 40X4,5 | 2 | 11657804868 | Shop at ECS Tuning | |||||
| 12 | Mounting panel | 4 | 11657794574 | $17.80 | Shop at ECS Tuning | |||||
| 13 | ISA screw | M6X16-8.8-ZNNIV | 4 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E87 LCI 123d Turbocharger?
- This technical diagram illustrates the Turbocharger within the Engine group for the 1 Series E87 LCI 123d produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Turbo charger (Part #11657804637).
- Which models use the hardware listed in this Turbocharger?
- The hardware and components featured in the Turbocharger are specific to the 1 Series E87 LCI 123d produced during 2011. These technical specifications ensure that parts like the Turbo charger (11657804637) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Turbocharger assembly?
- Each item in the Turbocharger corresponds to the numbered list below the illustration. For the 1 Series E87 LCI 123d, you can identify the Turbo charger by locating its position on the schematic, which then links to the official BMW part number 11657804637 for the Engine section.
