Exhaust manifold-AGR for BMW 1 Series E82 123d (2013)

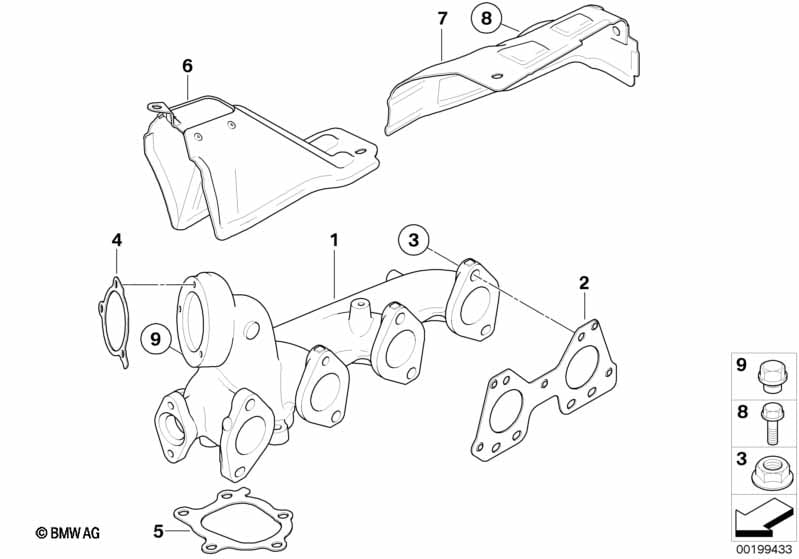

This Exhaust manifold-AGR technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 123d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust manifold | 1 | 03/2009 | 11627812259 | Shop at ECS Tuning | |||||
| 02 | Gasket Steel | 2 | 11628509783 | Shop at ECS Tuning | ||||||
| 03 | Flange nut | M7 | 8 | 11628597827 | Shop at ECS Tuning | |||||
| 04 | Gasket Steel | 1 | 11657805582 | Shop at ECS Tuning | ||||||
| 05 | Gasket Steel | 1 | 11657804865 | Shop at ECS Tuning | ||||||
| 06 | Heat protection shield | 1 | 11628506584 | Shop at ECS Tuning | ||||||
| 07 | Heat protection shield | 1 | 11627800662 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt with washer | M6X12-U1-8.8 | 3 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Screw plug | 1 | 13627810310 | Shop at ECS Tuning | ||||||
| only applies to | ||||||||||
| -- | Exhaust manifold | X | 11627812259 | Shop at ECS Tuning | ||||||
