Belt Drive f power steering pump for BMW 1 Series E87 LCI 116d (2011)

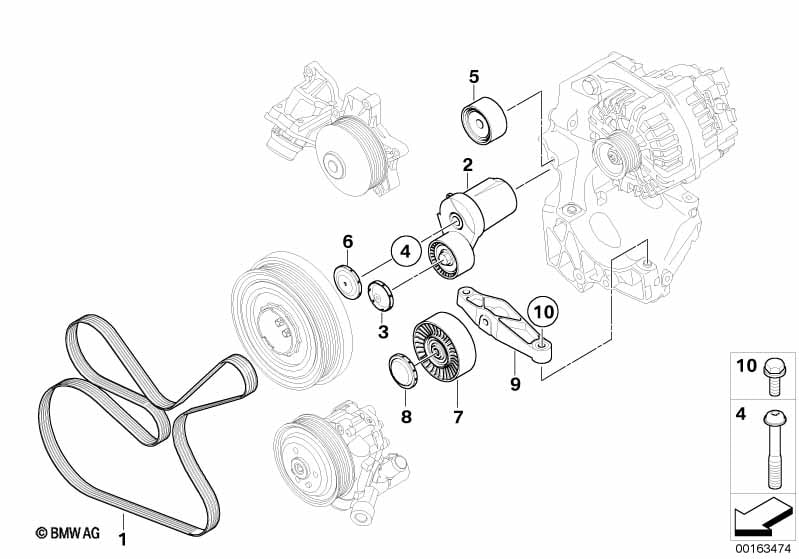

This Belt Drive f power steering pump technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 116d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Hydraulic steering without a/c | ||||||||||
| 01 | Ribbed v-belt | 6 PK X 1798 | 1 | 11288575057 | Shop at ECS Tuning | |||||
| 02 | Mechanical belt tensioner | 1 | 11287800333 | Shop at ECS Tuning | ||||||
| 03 | Protection cap adjusting pulley | 1 | 11287802640 | Shop at ECS Tuning | ||||||
| 04 | ISA screw | M10X100 | 1 | 11287811798 | Shop at ECS Tuning | |||||
| 05 | Deflection pulley | 1 | 11287800562 | Shop at ECS Tuning | ||||||
| 06 | Protection cap | 1 | 11281435114 | $2.37 | Shop at ECS Tuning | |||||
| 07 | Deflection pulley | 1 | 11287556251 | $46.81 | Shop at ECS Tuning | |||||
| 08 | Protection cap | 1 | 11287795159 | $2.37 | Shop at ECS Tuning | |||||
| 09 | Bracket, deflection pulley | 1 | 11287800819 | +core | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M8X40-U1-8.8 | 2 | 07119904514 | $0.49 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E87 LCI 116d Belt Drive f power steering pump?
- This technical diagram illustrates the Belt Drive f power steering pump within the Engine group for the 1 Series E87 LCI 116d produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Ribbed v-belt (Part #11288575057).
- Which models use the hardware listed in this Belt Drive f power steering pump?
- The hardware and components featured in the Belt Drive f power steering pump are specific to the 1 Series E87 LCI 116d produced during 2011. These technical specifications ensure that parts like the Ribbed v-belt (11288575057) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Belt Drive f power steering pump assembly?
- Each item in the Belt Drive f power steering pump corresponds to the numbered list below the illustration. For the 1 Series E87 LCI 116d, you can identify the Ribbed v-belt by locating its position on the schematic, which then links to the official BMW part number 11288575057 for the Engine section.
