Cooling System Water Hoses for BMW 7 Series E38 740i (1998)

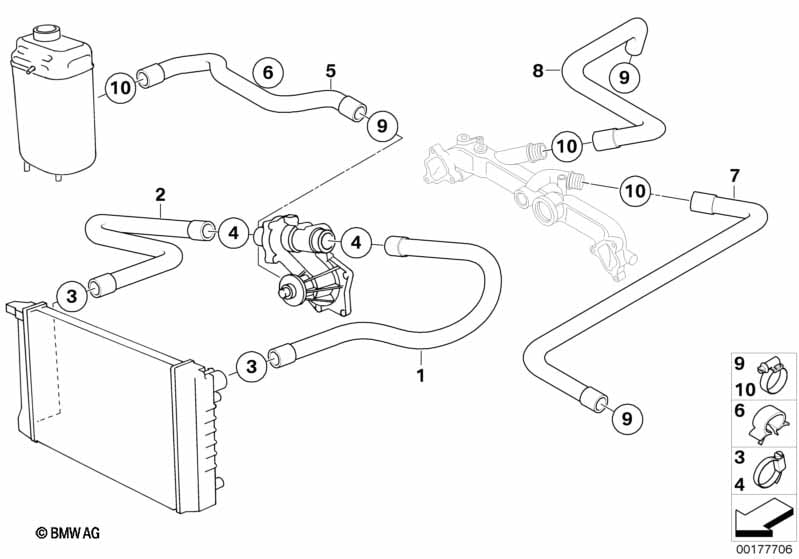

This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Heater water hose see main section 64 |
|||||||||
| 01 | Water hose | 1 | 09/1998 | 11531745595 | $26.42 | Shop at ECS Tuning | ||||
| 02 | Water hose | 1 | 09/1998 | 11531741409 | $33.96 | Shop at ECS Tuning | ||||
| 03 | Hose clamp | L42-48 | 2 | 09/1998 | 07129952119 | $1.15 | Shop at ECS Tuning | |||
| 03 | Hose clamp | L42-52 | 2 | 09/1998 | 11531708296 | $2.60 | Shop at ECS Tuning | |||
| 04 | Hose clamp | L=47-54MM | 2 | 09/1998 | 07129952121 | $1.42 | Shop at ECS Tuning | |||
| 04 | Hose clamp | L42-52 | 2 | 09/1998 | 11531708296 | $2.60 | Shop at ECS Tuning | |||
| 05 | Water hose | 1 | 09/1998 | 11531741404 | $18.87 | Shop at ECS Tuning | ||||
| 06 | Cable holder | D=20MM | 1 | 09/1998 | 61131379136 | $1.30 | Shop at ECS Tuning | |||
| 07 | Hose f engine inlet and addit.water pump | 1 | 09/1998 | 64218380270 | $17.00 | Shop at ECS Tuning | ||||
| 08 | Hose f radiator and engine return | 1 | 09/1998 | 64218390319 | $13.30 | Shop at ECS Tuning | ||||
| 09 | Hose clamp | L16-30 | 3 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 10 | Hose clamp | L28-33 | 3 | 09/1998 | 07129952113 | $0.96 | Shop at ECS Tuning | |||
