Oil Pan for BMW 7 Series F02 740Li (2012)

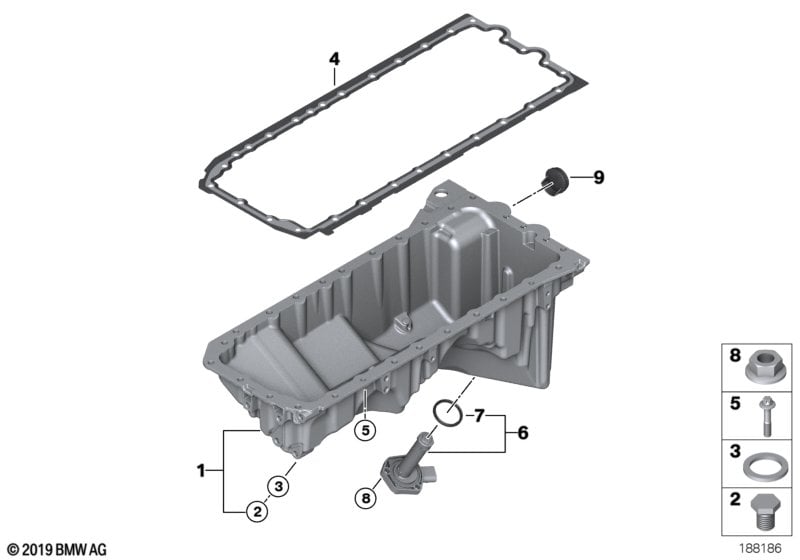

This Oil Pan technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil Pan | 1 | 11137556663 | +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of aluminium screws oil pan | 1 | 11132210959 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Torx screw | M8X50-AL | 1 | 11137582340 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| Attention! Aluminum screws may only be used once. For additional information, refer to the repair manual! |
||||||||||
| 02 | Screw plug | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 04 | Profile-gasket | 1 | 11137600482 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Set of aluminium screws oil pan | 1 | 11132210959 | Shop at ECS Tuning | ||||||
| -- | Torx screw | M8X36-AL | 1 | 11137559537 | $1.65 | Shop at ECS Tuning | ||||
| -- | Torx screw | M8X50-AL | 1 | 11137582340 | Shop at ECS Tuning | |||||
| Attention! Aluminum screws may only be used once. For additional information, refer to the repair manual! |
||||||||||
| 05 | Set of aluminium screws oil pan | 1 | 11132210959 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Torx screw | M8X50-AL | 1 | 11137582340 | Shop at ECS Tuning | |||||
| 06 | Oil levelling sensor | 1 | 12617607910 | Shop at ECS Tuning | ||||||
| 07 | Gasket ring | 1 | 12611744292 | $6.42 | Shop at ECS Tuning | |||||
| 08 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 09 | Protection cap | 1 | 11137573670 | Shop at ECS Tuning | ||||||
