Engine block for BMW 3 Series E30 325ix (1991)

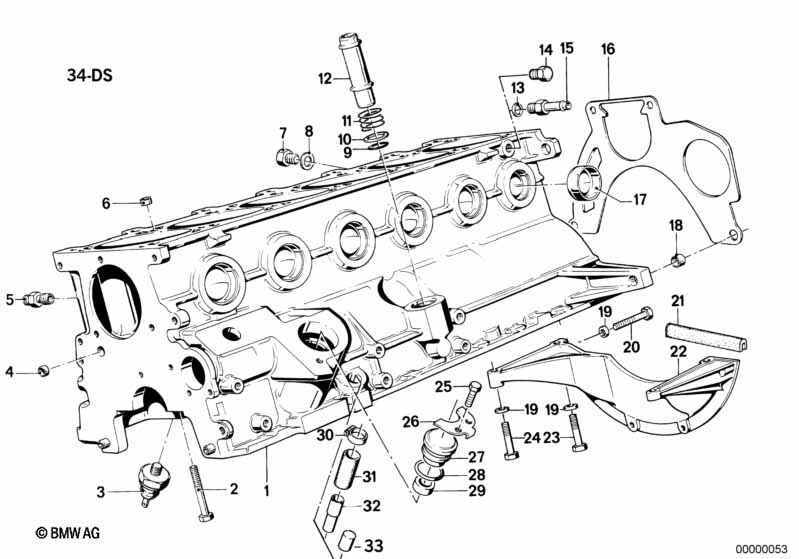

This Engine block technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exch. engine block with pistons | 1 | 11111714840 | $1465.37 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M10X75 | X | 11111735525 | $0.93 | Shop at ECS Tuning | ||||
| 03 | Oil pressure switch | M12X1,5 | 1 | 12618611273 | Shop at ECS Tuning | |||||
| 04 | Plug | D=12,0MM | 2 | 11111268539 | $0.58 | Shop at ECS Tuning | ||||
| 05 | Threaded pipe joint | M20X1,5 | 1 | 11112140435 | $8.67 | Shop at ECS Tuning | ||||
| 06 | Dowel | D=12,5MM | 2 | 11121726241 | $1.62 | Shop at ECS Tuning | ||||
| 07 | Screw plug | AM14X1,5 | 1 | 07119909704 | Shop at ECS Tuning | |||||
| 08 | Gasket ring | A14X18-AL | 1 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 09 | O-ring | 2 | 11151714390 | $1.58 | Shop at ECS Tuning | |||||
| 10 | Washer | 2 | 11151280937 | $1.75 | Shop at ECS Tuning | |||||
| 11 | Compression spring | 1 | 11151265346 | $4.42 | Shop at ECS Tuning | |||||
| 12 | Pipe | 1 | 11151280938 | $8.13 | Shop at ECS Tuning | |||||
| 13 | Gasket ring | A10X13.5-AL | 1 | 07119963073 | $0.11 | Shop at ECS Tuning | ||||
| 13 | Gasket ring | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| 14 | Screw plug | AM12X1,5 | 1 | 07119909703 | Shop at ECS Tuning | |||||
| 14 | Screw plug | M10 | 1 | 11111254189 | $2.13 | Shop at ECS Tuning | ||||
| 15 | Connector | M12 | 1 | 11121740396 | $6.85 | Shop at ECS Tuning | ||||
| 16 | Covering plate | 1 | 11141280826 | $11.15 | ENDED | Shop at ECS Tuning | ||||
| 17 | Cover lid | D=45MM | X | 11111714712 | $3.32 | Shop at ECS Tuning | ||||
| 18 | Dowel | D=14,5MM | 2 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 19 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 19 | Washer | 8,4 | 4 | 07119931697 | $0.40 | Shop at ECS Tuning | ||||
| 20 | Torx bolt | M12X45 | 2 | 23001222890 | $1.23 | Shop at ECS Tuning | ||||
| 20 | Torx bolt | M12X75 | 2 | 23001222893 | $1.62 | Shop at ECS Tuning | ||||
| 21 | Rubber seal | 1 | 11141287490 | $2.40 | ENDED | Shop at ECS Tuning | ||||
| 22 | Bowl reinforcement | 1 | 11141705115 | $131.69 | ENDED | Shop at ECS Tuning | ||||
| 23 | Hex bolt | M8X50 | 1 | 07119904533 | $2.84 | Shop at ECS Tuning | ||||
| 23 | Hex bolt | M8X30 | 1 | 07119913664 | $0.47 | Shop at ECS Tuning | ||||
| 24 | Hexagon bolt | M8X65 | 1 | 07119903018 | Shop at ECS Tuning | |||||
| 24 | Hex bolt | M8X60-ZNNIV SI | 1 | 07119905974 | Shop at ECS Tuning | |||||
| 25 | Hex bolt | M8X28-ZN | 1 | 07119913659 | $0.47 | ENDED | Shop at ECS Tuning | |||
| 26 | Holder | 1 | 12121364199 | $11.16 | ENDED | Shop at ECS Tuning | ||||
| 27 | Bearing cover | 1 | 11411276333 | $38.81 | ENDED | Shop at ECS Tuning | ||||
| 28 | Gasket ring | 1 | 12111363190 | $1.59 | ENDED | Shop at ECS Tuning | ||||
| 29 | Needle sleeve | 1 | 11111265180 | Shop at ECS Tuning | ||||||
| 30 | Hose clamp | L18-24 | 1 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 31 | Bushing | 1 | 11431258329 | $2.48 | ENDED | Shop at ECS Tuning | ||||
| 32 | Guide tube | 1 | 11111273769 | $4.82 | ENDED | Shop at ECS Tuning | ||||
| 33 | Cover lid | 1 | 11111718873 | $1.15 | Shop at ECS Tuning | |||||
| 34 | Gasket Set Engine Block Asbesto Free | 1 | 11111730874 | $118.28 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
