Timing cover lower for BMW 3 Series E30 325e (1987)

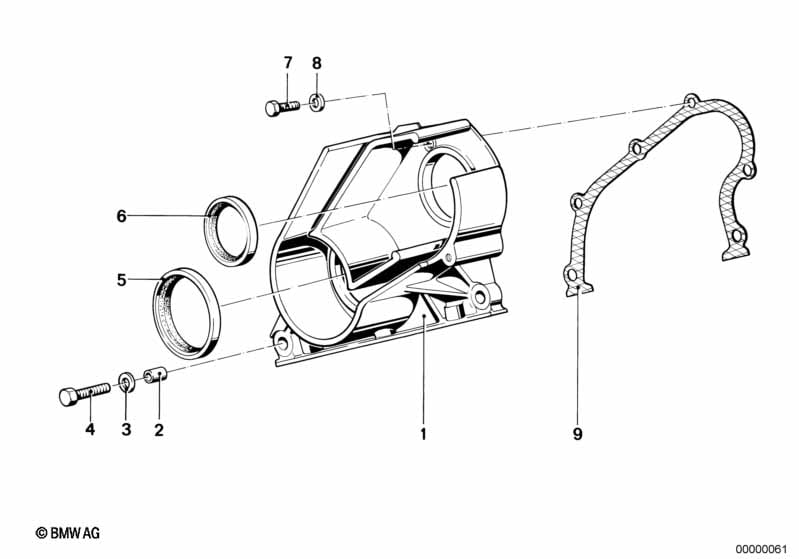

This Timing cover lower technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover | 1 | 11141272390 | $76.03 | Shop at ECS Tuning | |||||
| 02 | Dowel | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 03 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X22-8.8-ZNS3 | 2 | 07119904040 | Shop at ECS Tuning | |||||
| 05 | Shaft seal | 48X65X10 | 1 | 11141275466 | $24.02 | Shop at ECS Tuning | ||||
| 06 | Shaft seal | 38X50X7 | 1 | 11121284154 | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M8X25-Z3 | 4 | 07119915082 | $0.62 | Shop at ECS Tuning | ||||
| 08 | Wave washer | B6-ZNS3 | 4 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 08 | Spring washer Black | B6-ZN | 4 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Gasket Asbestos Free | 1 | 11141720903 | $2.12 | Shop at ECS Tuning |
