Belt Drive-Vibration Damper for BMW 3 Series E30 320i (1990)

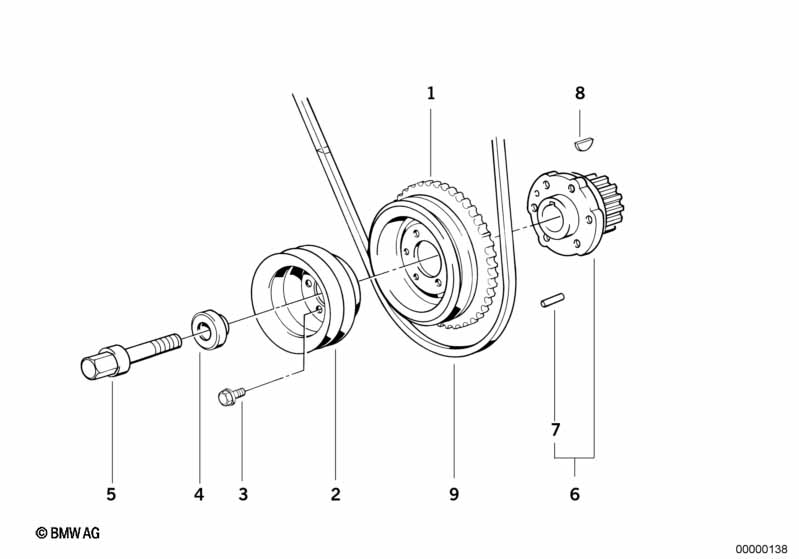

This Belt Drive-Vibration Damper technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vibration damper | 1 | 11231708837 | Shop at ECS Tuning | ||||||
| 01 | Vibration damper | 1 | 11231726351 | Shop at ECS Tuning | ||||||
| For vehicles with Air conditioning and Power steering |
=Yes =Yes |
|||||||||
| 02 | Pulley | D=119,6 | 1 | 11231280958 | $70.73 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M8X16 | 6 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Washer | 1 | 11231288660 | $8.10 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M18X1,5X65 | 1 | 11231709037 | $8.04 | Shop at ECS Tuning | ||||
| 06 | Gear wheel,tooth belt | 1 | 11211284940 | $84.25 | Shop at ECS Tuning | |||||
| 07 | Pin | 1 | 11231263911 | $0.92 | Shop at ECS Tuning | |||||
| 08 | Woodruff key | 5X6.5 | 1 | 07119951480 | $0.88 | Shop at ECS Tuning | ||||
| 09 | Fan belt | 9,5X965 | 1 | 11511711091 | Shop at ECS Tuning | |||||
