Flywheel / Twin Mass Flywheel for BMW 3 Series E30 320i (1991)

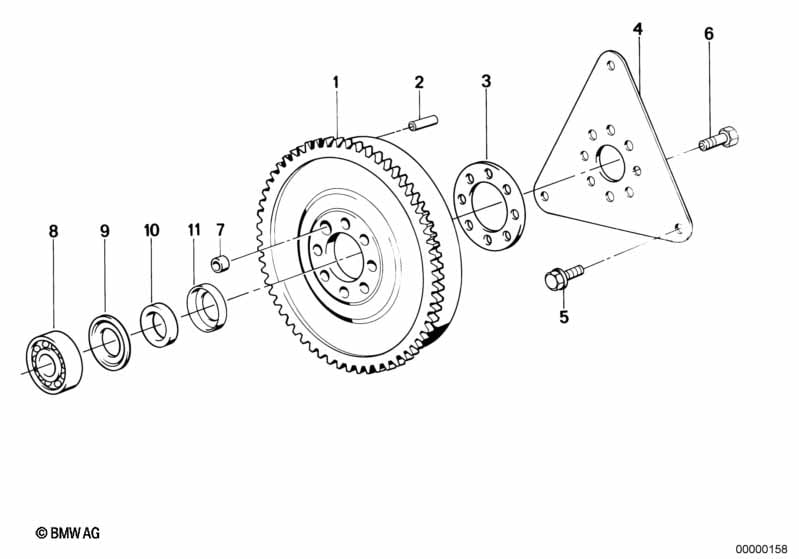

This Flywheel / Twin Mass Flywheel technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Flywheel | 1 | 11221706573 | $459.95 | ENDED | Shop at ECS Tuning | ||||
| 02 | Dowel pin | 3 | 11221744338 | $7.48 | Shop at ECS Tuning | |||||
| 03 | Shim | 1 | 11221262827 | $32.37 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M12X1,5X28 | 8 | 11227805885 | $2.30 | Shop at ECS Tuning | ||||
| 07 | Dowel | D=14,5MM | 1 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 08 | Grooved ball bearing | 12X32X10 | 1 | 11211709681 | $17.67 | Shop at ECS Tuning | ||||
| 08 | Grooved ball bearing | 1 | 11211709934 | Shop at ECS Tuning | ||||||
| 09 | Covering plate | 1 | 11211744345 | $3.92 | Shop at ECS Tuning | |||||
| 10 | Feltring | 1 | 11211744601 | $0.87 | ENDED | Shop at ECS Tuning | ||||
| 11 | Covering cap | 1 | 11211744342 | $1.18 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Flywheel / Twin Mass Flywheel?
- This technical diagram illustrates the Flywheel / Twin Mass Flywheel within the Engine group for the 3 Series E30 320i produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Flywheel (Part #11221706573).
- Which models use the hardware listed in this Flywheel / Twin Mass Flywheel?
- The hardware and components featured in the Flywheel / Twin Mass Flywheel are specific to the 3 Series E30 320i produced during 1991. These technical specifications ensure that parts like the Flywheel (11221706573) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Flywheel / Twin Mass Flywheel assembly?
- Each item in the Flywheel / Twin Mass Flywheel corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Flywheel by locating its position on the schematic, which then links to the official BMW part number 11221706573 for the Engine section.
