Timing cover upper for BMW 3 Series E30 320i (1991)

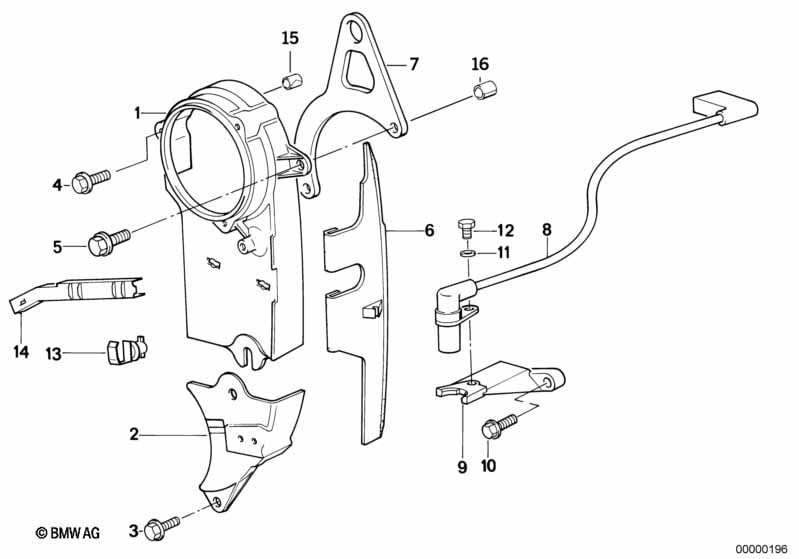

This Timing cover upper technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering Upper | 1 | 11141714863 | $54.10 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering Lower | 1 | 11141714856 | $10.88 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M6X22-Z3 | 2 | 07119913957 | $0.22 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex bolt with washer | M6X55-Z3 | 1 | 07119912287 | $10.71 | ENDED | Shop at ECS Tuning | |||
| 05 | Hex bolt with washer | M8X25-Z3 | 1 | 07119915082 | $0.62 | Shop at ECS Tuning | ||||
| 06 | Rubber seal | 1 | 11141269557 | $12.31 | Shop at ECS Tuning | |||||
| 07 | Hook | 1 | 11141706959 | $5.33 | Shop at ECS Tuning | |||||
| 08 | Pulse generator | 1 | 12141720856 | Shop at ECS Tuning | ||||||
| 09 | Holder | 1 | 11141713173 | $5.68 | ENDED | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M8X25-Z3 | 1 | 07119915082 | $0.62 | Shop at ECS Tuning | ||||
| 11 | Wave washer | B6-ZNS3 | 1 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 11 | Spring washer Black | B6-ZN | 1 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 12 | ISA screw | M6X12-8.8-ZNNIV | 1 | 07129905867 | Shop at ECS Tuning | |||||
| 13 | Holder | 2 | 11141716134 | $0.49 | Shop at ECS Tuning | |||||
| 14 | Cover | 2 | 11141716133 | $3.32 | ENDED | Shop at ECS Tuning | ||||
| 15 | Dowel | D=8,5X13MM | 1 | 11121726244 | $1.07 | Shop at ECS Tuning | ||||
| 16 | Dowel | D=10,5MM | 1 | 11121726238 | $1.62 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
