Valve Timing Gear - Cam Shaft for BMW 3 Series E30 324d (1990)

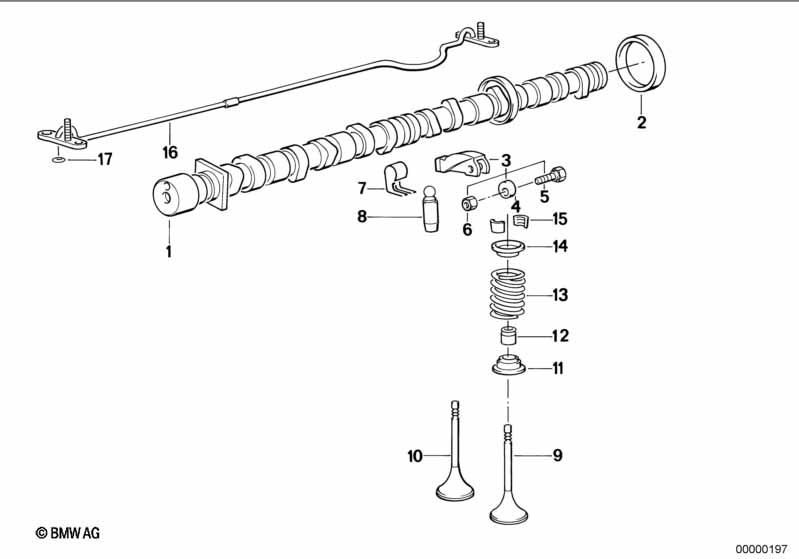

This Valve Timing Gear - Cam Shaft technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 324d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Camshaft Camshaft | 1 | 11311287139 | $563.58 | Shop at ECS Tuning | |||||
| 02 | Plain bearing | 54X46X10 | 1 | 11661279954 | $18.98 | Shop at ECS Tuning | ||||
| 03 | Oscillating lever | X | 11331275878 | $55.08 | Shop at ECS Tuning | |||||
| 04 | Eccentric | X | 11331285610 | $17.76 | Shop at ECS Tuning | |||||
| 05 | Knurled bolt | X | 11332241527 | $4.57 | Shop at ECS Tuning | |||||
| 06 | Hex nut | M6 | X | 11331744333 | $0.28 | Shop at ECS Tuning | ||||
| 07 | Clip | X | 11331287568 | $1.13 | Shop at ECS Tuning | |||||
| 08 | Ball pin | X | 11121287577 | $7.47 | Shop at ECS Tuning | |||||
| 09 | Intake valve | 35,0/6,94MM | 6 | 11342242621 | $70.98 | Shop at ECS Tuning | ||||
| VALVE HEAD THICKNES: +0,25MM | ||||||||||
| 09 | Intake valve | 35,0/6,94MM | 6 | 11341275940 | ENDED | Shop at ECS Tuning | ||||
| 09 | Intake valve w.oversize VA.system +0,1mm | 35,0/7,04MM | 6 | 11341288658 | $158.47 | ENDED | Shop at ECS Tuning | |||
| 10 | Exhaust valve | 31.0/6,94MM | 6 | 11342242622 | $77.29 | ENDED | Shop at ECS Tuning | |||
| VALVE HEAD THICKNES: +0,25MM | ||||||||||
| 10 | Exhaust valve | 31,0/6,94MM | 6 | 11341275941 | $62.50 | Shop at ECS Tuning | ||||
| 10 | Exh. valve w.oversize VA.system +0,1mm | 31,0/7,04MM | 6 | 11341288659 | $75.89 | ENDED | Shop at ECS Tuning | |||
| 11 | Spring pocket | X | 11341279137 | $3.77 | ENDED | Shop at ECS Tuning | ||||
| 12 | Repair kit valve seal ring | 1 | 11349059172 | $46.94 | Shop at ECS Tuning | |||||
| 13 | Valve spring | D=30,8MM | X | 11341279211 | $7.67 | Shop at ECS Tuning | ||||
| 14 | Spring pocket | X | 11341281402 | $3.77 | Shop at ECS Tuning | |||||
| 15 | Valve collet | X | 11341307136 | $1.08 | Shop at ECS Tuning | |||||
| 16 | Oil pipe | 1 | 11421284104 | $40.38 | Shop at ECS Tuning | |||||
| 17 | O-ring | 5X2 | 2 | 11421284113 | $0.79 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 324d Valve Timing Gear - Cam Shaft?
- This technical diagram illustrates the Valve Timing Gear - Cam Shaft within the Engine group for the 3 Series E30 324d produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Camshaft Camshaft (Part #11311287139).
- Which models use the hardware listed in this Valve Timing Gear - Cam Shaft?
- The hardware and components featured in the Valve Timing Gear - Cam Shaft are specific to the 3 Series E30 324d produced during 1990. These technical specifications ensure that parts like the Camshaft Camshaft (11311287139) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Valve Timing Gear - Cam Shaft assembly?
- Each item in the Valve Timing Gear - Cam Shaft corresponds to the numbered list below the illustration. For the 3 Series E30 324d, you can identify the Camshaft Camshaft by locating its position on the schematic, which then links to the official BMW part number 11311287139 for the Engine section.
