Lubrication system-Oil filter for BMW 3 Series E30 325e (1988)

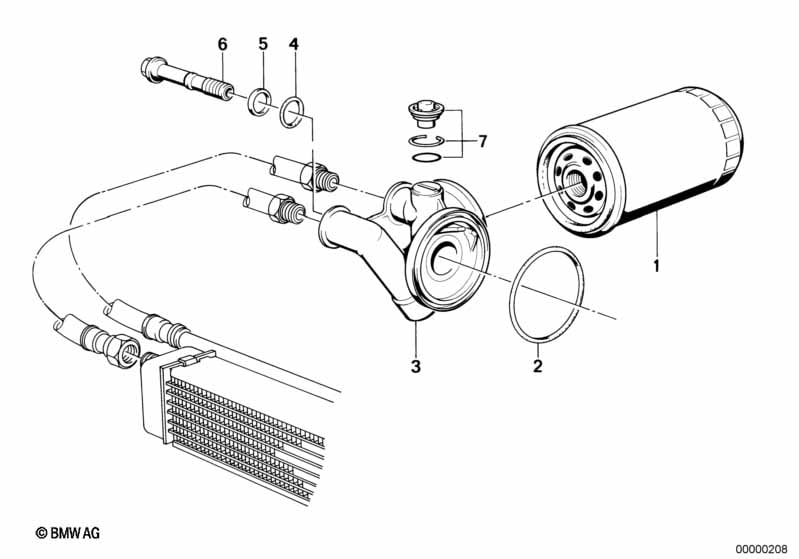

This Lubrication system-Oil filter technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil filter | 1 | 11421707779 | Shop at ECS Tuning | ||||||
| 02 | O-ring | 65X3 | 1 | 11421265670 | $4.27 | Shop at ECS Tuning | ||||
| 03 | Oil filter head | PUROLATOR | 1 | 11421711070 | $193.67 | ENDED | Shop at ECS Tuning | |||
| 04 | O-ring | 20,0X3 | 1 | 11421714764 | $4.65 | Shop at ECS Tuning | ||||
| 05 | Gasket ring | A24X29-AL | 1 | 07119963384 | $0.57 | Shop at ECS Tuning | ||||
| 05 | Gasket ring | A27X32-AL | 1 | 07119963441 | $0.30 | Shop at ECS Tuning | ||||
| 06 | Hollow bolt | PUROLATOR | 1 | 11421711071 | $20.59 | Shop at ECS Tuning | ||||
| 07 | Gasket set | 1 | 11429059338 | $10.70 | SI 111590270 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325e Lubrication system-Oil filter?
- This technical diagram illustrates the Lubrication system-Oil filter within the Engine group for the 3 Series E30 325e produced during 1988. It provides a detailed exploded view of the components, identifying key parts such as the Oil filter (Part #11421707779).
- Which models use the hardware listed in this Lubrication system-Oil filter?
- The hardware and components featured in the Lubrication system-Oil filter are specific to the 3 Series E30 325e produced during 1988. These technical specifications ensure that parts like the Oil filter (11421707779) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lubrication system-Oil filter assembly?
- Each item in the Lubrication system-Oil filter corresponds to the numbered list below the illustration. For the 3 Series E30 325e, you can identify the Oil filter by locating its position on the schematic, which then links to the official BMW part number 11421707779 for the Engine section.
