Cooling system-fan/fan coupling for BMW 3 Series E30 316i (1992)

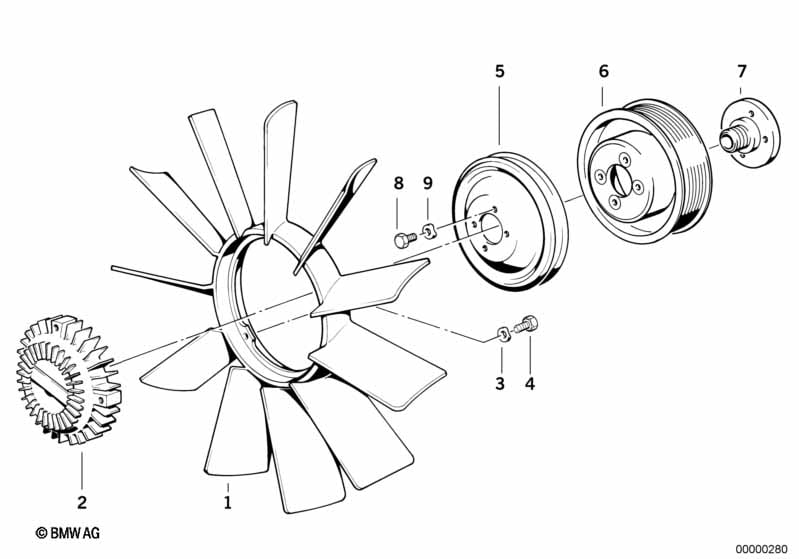

This Cooling system-fan/fan coupling technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fan | D=400 MM | 1 | 11521719040 | Shop at ECS Tuning | |||||
| 02 | Fan coupling | F&S | 1 | 11521723918 | $202.21 | Shop at ECS Tuning | ||||
| 02 | Fan coupling | BEHR | 1 | 11521740962 | $202.21 | Shop at ECS Tuning | ||||
| 03 | Wave washer | B6-ZNS3 | 4 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 03 | Spring washer Black | B6-ZN | 4 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 04 | ISA screw | M6X16-8.8-ZNNIV | 4 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 05 | Pulley | 1 | 11511709775 | $57.20 | Shop at ECS Tuning | |||||
| 07 | Hub | 1 | 11511709776 | $11.61 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M6X12-U1-8.8 | 4 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Spring washer Black | B6-ZN | 4 | 07119932073 | $0.38 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 316i Cooling system-fan/fan coupling?
- This technical diagram illustrates the Cooling system-fan/fan coupling within the Engine group for the 3 Series E30 316i produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Fan (Part #11521719040).
- Which models use the hardware listed in this Cooling system-fan/fan coupling?
- The hardware and components featured in the Cooling system-fan/fan coupling are specific to the 3 Series E30 316i produced during 1992. These technical specifications ensure that parts like the Fan (11521719040) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling system-fan/fan coupling assembly?
- Each item in the Cooling system-fan/fan coupling corresponds to the numbered list below the illustration. For the 3 Series E30 316i, you can identify the Fan by locating its position on the schematic, which then links to the official BMW part number 11521719040 for the Engine section.
