Vacuum control - engine for BMW 3 Series E30 325e (1987)

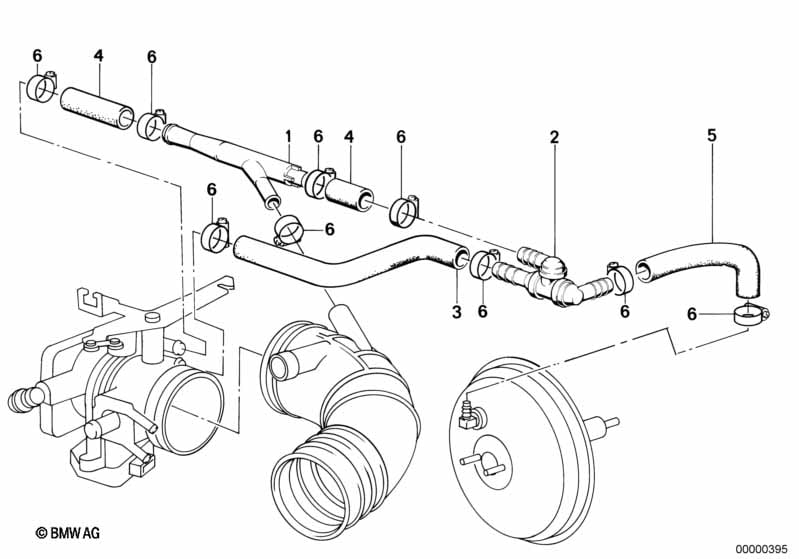

This Vacuum control - engine technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | non-return valve | 1 | 34331151534 | Shop at ECS Tuning | ||||||
| 03 | Connector | 1 | 34331153977 | $11.20 | Shop at ECS Tuning | |||||
| 04 | Vacuum hose | 12X19 | X | 34331115926 | $28.71 | +core | Shop at ECS Tuning | |||
| 05 | Vacuum hose | 12X19 | X | 34331115926 | $28.71 | +core | Shop at ECS Tuning | |||
| 06 | Hose clamp | L18-24 | X | 07129952109 | $1.07 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325e Vacuum control - engine?
- This technical diagram illustrates the Vacuum control - engine within the Engine group for the 3 Series E30 325e produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the non-return valve (Part #34331151534).
- Which models use the hardware listed in this Vacuum control - engine?
- The hardware and components featured in the Vacuum control - engine are specific to the 3 Series E30 325e produced during 1987. These technical specifications ensure that parts like the non-return valve (34331151534) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Vacuum control - engine assembly?
- Each item in the Vacuum control - engine corresponds to the numbered list below the illustration. For the 3 Series E30 325e, you can identify the non-return valve by locating its position on the schematic, which then links to the official BMW part number 34331151534 for the Engine section.
