Intake manifold system for BMW 3 Series E30 320i (1991)

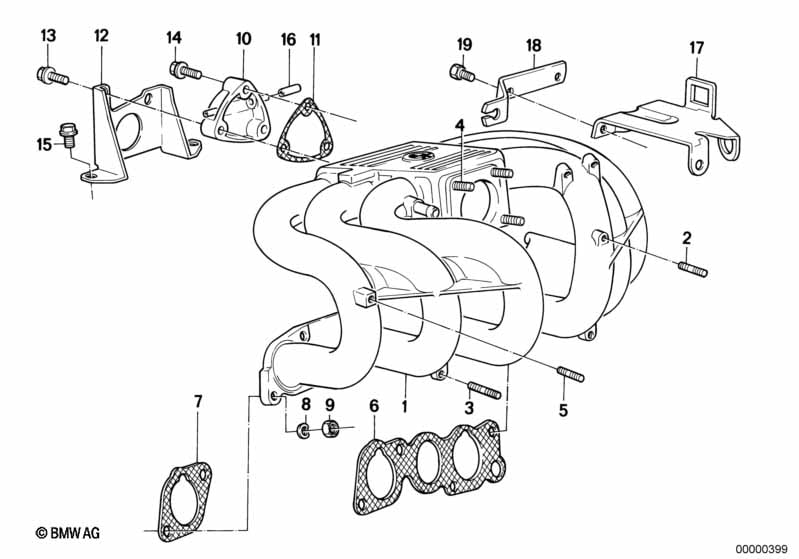

This Intake manifold system technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake manifold | 1 | 11611719751 | ENDED | Shop at ECS Tuning | |||||
| 02 | Stud bolt | M6X25-ZN | 1 | 07129908100 | $0.20 | Shop at ECS Tuning | ||||
| 03 | Stud bolt | M6X30-ZNNIV SI | 2 | 07129904544 | $1.42 | Shop at ECS Tuning | ||||
| 04 | Stud bolt | M6X35-ZNS3 | 4 | 07129903886 | Shop at ECS Tuning | |||||
| 05 | Stud bolt | M8X28 | 1 | 07129908147 | $0.47 | Shop at ECS Tuning | ||||
| 06 | Gasket Asbestos Free | 1 | 11611726012 | $5.79 | Shop at ECS Tuning | |||||
| 07 | Gasket Asbestos Free | 4 | 11611726010 | $2.65 | Shop at ECS Tuning | |||||
| 08 | Wave washer | 8,4X15-ZNS3 | X | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Hex nut wiht flange | M8 | X | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 10 | Connection flange | 1 | 11611708857 | $11.07 | Shop at ECS Tuning | |||||
| 11 | Gasket Asbestos Free | 1 | 11611717286 | $2.42 | Shop at ECS Tuning | |||||
| 12 | Support plate | 1 | 11611708838 | $4.28 | Shop at ECS Tuning | |||||
| 13 | Hex bolt with washer | M6X30-ZNNIV SI | 2 | 07119906123 | $0.81 | Shop at ECS Tuning | ||||
| 14 | Hex bolt | M6X30-Z3 | 1 | 07119913980 | $0.60 | Shop at ECS Tuning | ||||
| 15 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 16 | Cap | D=5,0MM | 1 | 11611437694 | $3.39 | Shop at ECS Tuning | ||||
| 17 | Bracket | 1 | 11611277431 | $3.04 | Shop at ECS Tuning | |||||
| 18 | Bracket | 1 | 11611274939 | $0.84 | Shop at ECS Tuning | |||||
| 19 | Hex bolt | M6X16-8.8-ZNS3 | 3 | 07119904357 | $0.36 | Shop at ECS Tuning |
