Wheel casing for BMW 3 Series E30 318i (1991)

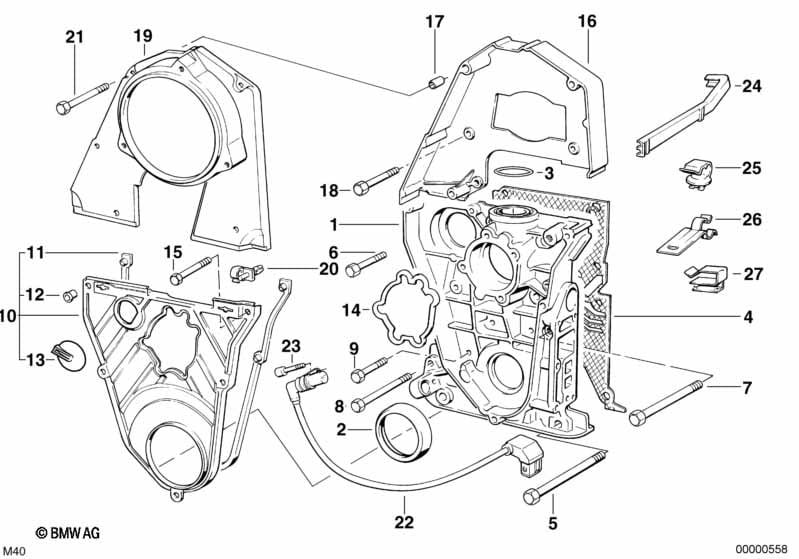

This Wheel casing technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control housing lower | INCL.PUMPE | 1 | 11141714616 | $176.33 | ENDED | Shop at ECS Tuning | |||
| 02 | Shaft seal | 42X52X8 | 1 | 11141714619 | Shop at ECS Tuning | |||||
| 03 | O-ring | 35,0X5,0 | 1 | 11141714554 | $4.75 | Shop at ECS Tuning | ||||
| 03 | O-ring | +0,30 | 1 | 11141721904 | $5.69 | Shop at ECS Tuning | ||||
| 04 | Gasket Asbestos Free | 1 | 11141734342 | $15.81 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M8X60-ZNNIV SI | 2 | 07119905855 | $0.82 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M8X20-ZNS3 | 4 | 07147165618 | $0.73 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X50-ZNNIV SI | 1 | 07119905377 | $0.53 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M6X30-ZNNIV SI | 3 | 07119906123 | $0.81 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6X18-U1 | 4 | 07119905399 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Cover | 1 | 11141739360 | $76.03 | ENDED | Shop at ECS Tuning | ||||
| 11 | Profile-gasket | 1 | 11141715329 | $14.46 | ENDED | Shop at ECS Tuning | ||||
| 12 | Bush | 5 | 11141715330 | Shop at ECS Tuning | ||||||
| 13 | Cover lid | 1 | 11141715316 | Shop at ECS Tuning | ||||||
| 14 | Profile-gasket | 1 | 11141715334 | $10.71 | Shop at ECS Tuning | |||||
| 15 | Hex bolt | M6X20-8.8-ZNS | 5 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | |||
| 16 | Timing case upper part | 1 | 11141734293 | Shop at ECS Tuning | ||||||
| 17 | Dowel | D=8,5X9MM | 2 | 11121726242 | $1.07 | Shop at ECS Tuning | ||||
| 18 | Hex bolt with washer | M6X25-ZNNIV SI | 3 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 19 | Cover f.distributor | 1 | 11141715436 | $56.53 | ENDED | Shop at ECS Tuning | ||||
| 20 | Cable holder | 1 | 11141717656 | $0.63 | Shop at ECS Tuning | |||||
| 21 | Hex bolt with washer | M6X25-ZNNIV SI | 4 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 22 | Pulse generator | 1 | 12141720858 | Shop at ECS Tuning | ||||||
| 23 | Fillister head with washer | M6X16-Z1-8.8 | 1 | 07119902316 | $2.84 | Shop at ECS Tuning | ||||
| 24 | Holder | 1 | 12141717574 | Shop at ECS Tuning | ||||||
| 25 | Clip | 2 | 12141715092 | Shop at ECS Tuning | ||||||
| 26 | Cable holder | 1 | 12141717663 | $1.45 | Shop at ECS Tuning | |||||
| 27 | Cable holder | 1 | 12511717908 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318i Wheel casing?
- This technical diagram illustrates the Wheel casing within the Engine group for the 3 Series E30 318i produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Control housing lower (Part #11141714616).
- Which models use the hardware listed in this Wheel casing?
- The hardware and components featured in the Wheel casing are specific to the 3 Series E30 318i produced during 1991. These technical specifications ensure that parts like the Control housing lower (11141714616) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wheel casing assembly?
- Each item in the Wheel casing corresponds to the numbered list below the illustration. For the 3 Series E30 318i, you can identify the Control housing lower by locating its position on the schematic, which then links to the official BMW part number 11141714616 for the Engine section.
