Timing and valve train-tooth belt for BMW 3 Series E30 325e (1988)

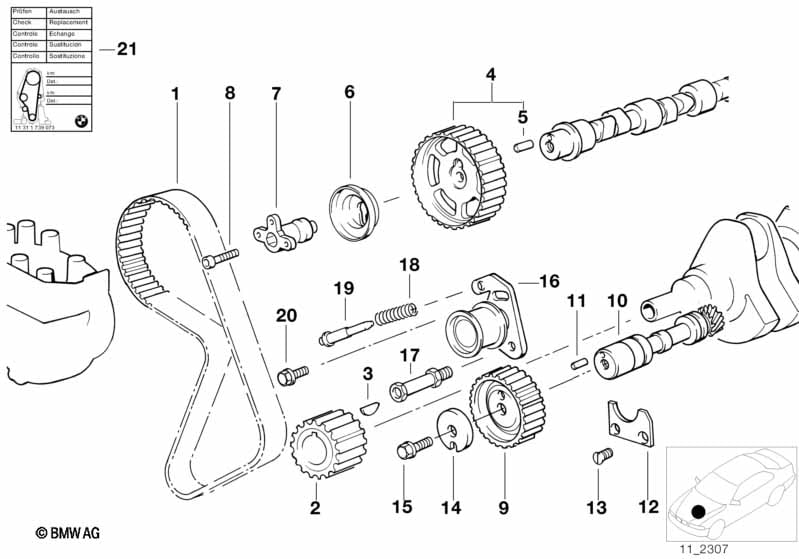

This Timing and valve train-tooth belt technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tooth belt semicircular profile | Z=127 | 1 | 11/1985 | 11311711081 | Shop at ECS Tuning | ||||
| 02 | Gear wheel,tooth belt | 1 | 11211284940 | $84.25 | Shop at ECS Tuning | |||||
| 03 | Woodruff key | 5X6.5 | 2 | 07119951480 | $0.88 | Shop at ECS Tuning | ||||
| 04 | Gear wheel,tooth belt | SINTER | 1 | 12/1986 | 11311714988 | $54.67 | ENDED | Shop at ECS Tuning | ||
| 05 | Dowel pin | 8X12,5MM | 1 | 11311716040 | $10.37 | Shop at ECS Tuning | ||||
| 06 | Cover | 1 | 12/1986 | 11311713475 | $2.82 | ENDED | Shop at ECS Tuning | |||
| 07 | Adapter | 1 | 12/1986 | 11311713064 | $20.65 | Shop at ECS Tuning | ||||
| 08 | Torx bolt | M10X35 | 1 | 11311715412 | $5.80 | Shop at ECS Tuning | ||||
| 09 | Gear wheel,tooth belt | SINTER | 1 | 11311717398 | $32.80 | Shop at ECS Tuning | ||||
| 10 | Intermediate shaft | B | 1 | 11/1985 | 11351716095 | $145.96 | Shop at ECS Tuning | |||
| 11 | Dowel pin | 8 M6X14 | 1 | 07119942079 | $0.30 | Shop at ECS Tuning | ||||
| 12 | Guide | 1 | 11351280551 | $7.88 | Shop at ECS Tuning | |||||
| 13 | Countersunk head screw | M6X12 | 2 | 52101817063 | $0.92 | Shop at ECS Tuning | ||||
| 14 | Washer | 1 | 11311714795 | $2.12 | Shop at ECS Tuning | |||||
| 15 | Lock bolt | M10X35 | 1 | 11/1985 | 11311714798 | $1.95 | ENDED | Shop at ECS Tuning | ||
| 16 | Adjusting pulley | 1 | 11311711154 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Tooth belt semicircular profile | Z=127 | 1 | 11311711081 | Shop at ECS Tuning | |||||
| 17 | Screw | 1 | 11311272433 | $5.13 | Shop at ECS Tuning | |||||
| 18 | Compression spring | 1 | 11311267746 | $1.09 | Shop at ECS Tuning | |||||
| 19 | Pin | 1 | 11311280960 | $4.32 | Shop at ECS Tuning | |||||
| 20 | Hex bolt with washer | M8X20-ZNS3 | 1 | 07147165618 | $0.73 | Shop at ECS Tuning | ||||
| 21 | Label | CAMSHT DRV BELT | 1 | 01001467809 | $0.25 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325e Timing and valve train-tooth belt?
- This technical diagram illustrates the Timing and valve train-tooth belt within the Engine group for the 3 Series E30 325e produced during 1988. It provides a detailed exploded view of the components, identifying key parts such as the Tooth belt semicircular profile (Part #11311711081).
- Which models use the hardware listed in this Timing and valve train-tooth belt?
- The hardware and components featured in the Timing and valve train-tooth belt are specific to the 3 Series E30 325e produced during 1988. These technical specifications ensure that parts like the Tooth belt semicircular profile (11311711081) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Timing and valve train-tooth belt assembly?
- Each item in the Timing and valve train-tooth belt corresponds to the numbered list below the illustration. For the 3 Series E30 325e, you can identify the Tooth belt semicircular profile by locating its position on the schematic, which then links to the official BMW part number 11311711081 for the Engine section.
