Valve Timing Gear - Cam Shaft for BMW 3 Series E30 320i (1991)

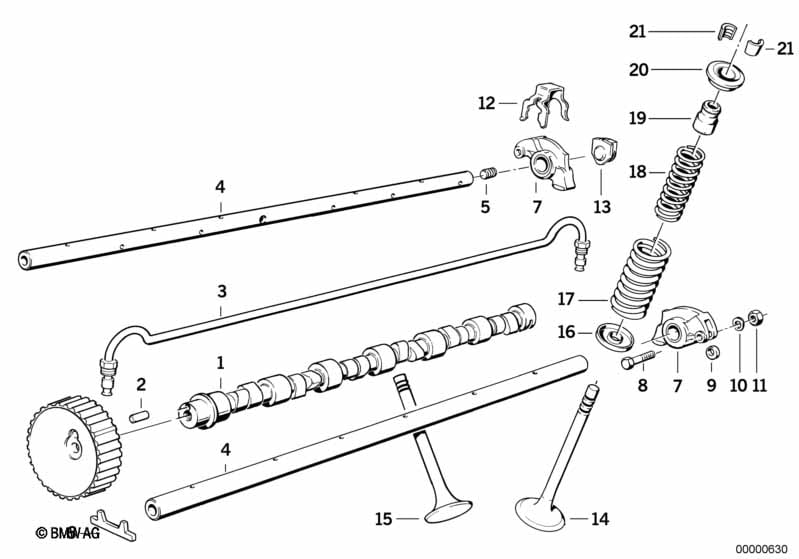

This Valve Timing Gear - Cam Shaft technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Camshaft Camshaft | 1 | 11311716139 | $585.21 | Shop at ECS Tuning | |||||
| 02 | Dowel pin | 8 M6X14 | 1 | 07119942079 | $0.30 | Shop at ECS Tuning | ||||
| 03 | Pipe | 1 | 11421265376 | $65.62 | Shop at ECS Tuning | |||||
| 04 | Rocker arm shaft | 2 | 11331274975 | Shop at ECS Tuning | ||||||
| 05 | Plug | 4 | 11331266400 | $5.48 | Shop at ECS Tuning | |||||
| 05 | Screw plug | M12X1 | 4 | 11331274923 | $1.62 | Shop at ECS Tuning | ||||
| 06 | Bracket | 1 | 11331264677 | $2.55 | ENDED | Shop at ECS Tuning | ||||
| 07 | Rocker arm | ZU 1271428 | X | 11331271429 | $33.04 | Shop at ECS Tuning | ||||
| 08 | Screw | X | 11331744355 | $2.03 | Shop at ECS Tuning | |||||
| 09 | Eccentric | X | 11331744354 | $4.92 | Shop at ECS Tuning | |||||
| 10 | Washer | X | 11331258327 | $0.10 | Shop at ECS Tuning | |||||
| 11 | Hex nut | M6 | X | 11331744333 | $0.28 | Shop at ECS Tuning | ||||
| 12 | Clamp | X | 11331280933 | $1.65 | Shop at ECS Tuning | |||||
| 13 | Blind plug | 4 | 11331264519 | $1.65 | Shop at ECS Tuning | |||||
| 14 | Intake valve | 40,0/6,97MM | 6 | 11341267721 | $41.21 | ENDED | Shop at ECS Tuning | |||
| 14 | Intake valve w.oversize VA.system +0,1mm | 40,0/7,07MM | 6 | 11341710965 | $29.90 | Shop at ECS Tuning | ||||
| 14 | Intake valve w.oversize VA.system +0,2mm | 40,0/7,17MM | 6 | 11341714817 | $34.32 | ENDED | Shop at ECS Tuning | |||
| 15 | Exhaust valve | 34,0/6,96MM | 6 | 11341280643 | $32.52 | Shop at ECS Tuning | ||||
| 15 | Exh. valve w.oversize VA.system +0,1mm | 34,0/7,06MM | 6 | 11341710962 | $177.20 | Shop at ECS Tuning | ||||
| 15 | Exhaust valve w.oversize VA.system+0,2mm | 34,0/7,16MM | 6 | 11341714818 | $177.20 | ENDED | Shop at ECS Tuning | |||
| 16 | Spring pocket | X | 11341706609 | $3.77 | Shop at ECS Tuning | |||||
| 17 | Valve spring | D=30,2MM | X | 11341706583 | $7.88 | Shop at ECS Tuning | ||||
| 18 | Valve spring | D=20,1MM | X | 11341706584 | $7.88 | Shop at ECS Tuning | ||||
| 19 | Repair kit valve seal ring | 1 | 11349059172 | $46.94 | Shop at ECS Tuning | |||||
| 20 | Upper spring plate | X | 11341706626 | $3.77 | Shop at ECS Tuning | |||||
| 21 | Valve collet | X | 11341307136 | $1.08 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
