Engine block for BMW 3 Series E30 316i (1991)

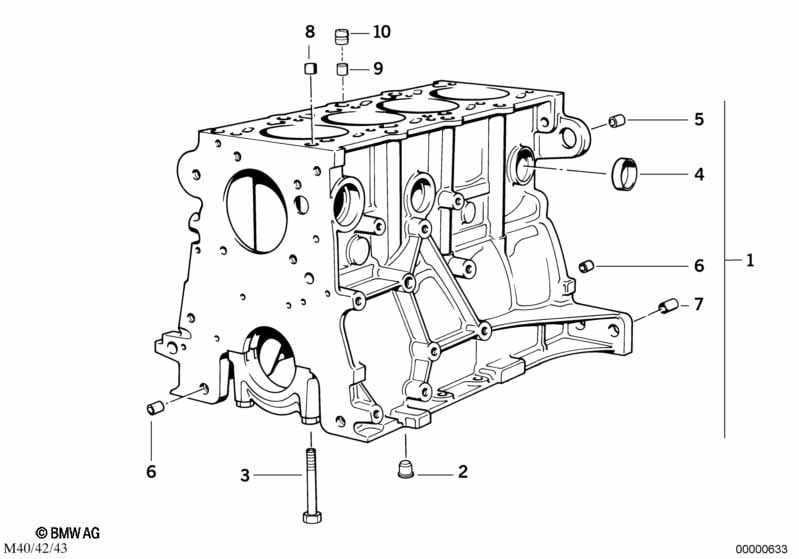

This Engine block technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exch. engine block with pistons | 1 | 11111739593 | $1674.00 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Spacer sleeve | 1 | 11111739185 | $3.60 | Shop at ECS Tuning | |||||
| -- | Fuel flow reducer | 1 | 11111739369 | Shop at ECS Tuning | ||||||
| 02 | Blind plug | 4 | 11421717989 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt | M10X75 | X | 11111735525 | $0.93 | Shop at ECS Tuning | ||||
| 04 | Cover lid | D=36MM | 4 | 11111717939 | $2.20 | Shop at ECS Tuning | ||||
| 05 | Plug | D=12,0MM | 1 | 11111268539 | $0.58 | Shop at ECS Tuning | ||||
| 06 | Dowel | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 07 | Dowel | D=14,5MM | 2 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 08 | Dowel | D=12,5MM | 2 | 11121726241 | $1.62 | Shop at ECS Tuning | ||||
| 09 | Fuel flow reducer | 1 | 11111739369 | Shop at ECS Tuning | ||||||
| 10 | Spacer sleeve | 1 | 11111739185 | $3.60 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 316i Engine block?
- This technical diagram illustrates the Engine block within the Engine group for the 3 Series E30 316i produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Exch. engine block with pistons (Part #11111739593).
- Which models use the hardware listed in this Engine block?
- The hardware and components featured in the Engine block are specific to the 3 Series E30 316i produced during 1991. These technical specifications ensure that parts like the Exch. engine block with pistons (11111739593) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine block assembly?
- Each item in the Engine block corresponds to the numbered list below the illustration. For the 3 Series E30 316i, you can identify the Exch. engine block with pistons by locating its position on the schematic, which then links to the official BMW part number 11111739593 for the Engine section.
