Cylinder head, electr. add-on parts for BMW MINI Cabrio R57 LCI Cooper (2010)

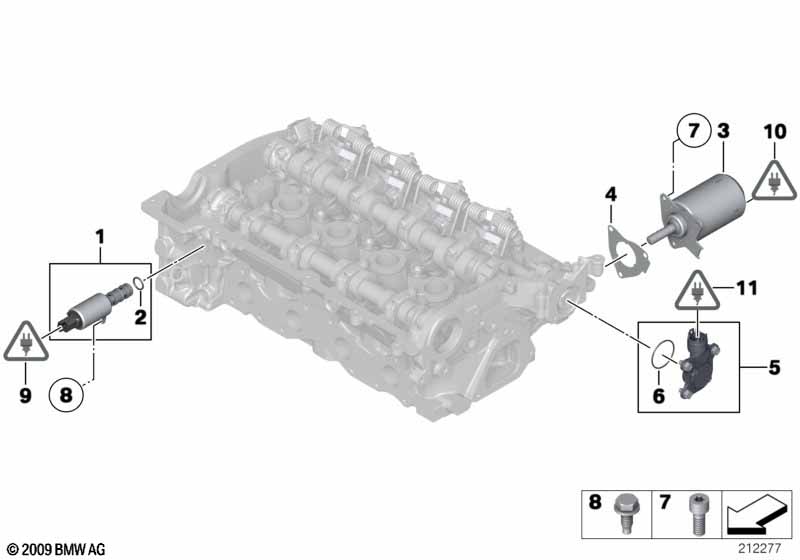

This Cylinder head, electr. add-on parts technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio R57 LCI Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Solenoid valve (SOLV) | 2 | 11368610388 | Shop at ECS Tuning | ||||||
| 02 | O-ring | 14X1,78 | 2 | 11367534776 | $1.19 | Shop at ECS Tuning | ||||
| 03 | Actuator | 1 | 11377533905 | $253.07 | Shop at ECS Tuning | |||||
| 04 | Gasket Steel | 1 | 11127560273 | $3.62 | Shop at ECS Tuning | |||||
| 05 | Eccentric shaft sensor | 1 | 11377541677 | $367.58 | Shop at ECS Tuning | |||||
| 06 | O-ring | 34,65X1,78 | 1 | 13627567161 | $2.48 | Shop at ECS Tuning | ||||
| 07 | ISA screw | M6X15 ZNNIV SI | 3 | 07129905385 | $1.50 | Shop at ECS Tuning | ||||
| 08 | Oval head screw | M6X16 | 2 | 11367605225 | Shop at ECS Tuning |
