Cylinder head cover for BMW MINI Cabrio R57 LCI Cooper (2010)

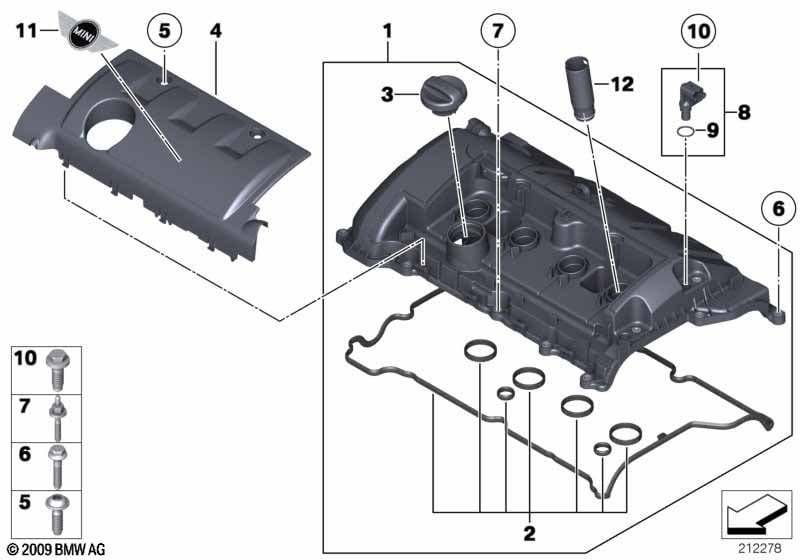

This Cylinder head cover technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio R57 LCI Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder head cover | 1 | 11127646554 | Shop at ECS Tuning | ||||||
| 02 | Set of profile gaskets | 1 | 11127567877 | $41.12 | Shop at ECS Tuning | |||||
| 03 | Cap for oil filler | 1 | 11127542116 | $17.16 | Shop at ECS Tuning | |||||
| 04 | Cover | 1 | 11127585906 | $96.05 | Shop at ECS Tuning | |||||
| 05 | Oval head screw | 2 | 11127549986 | $0.65 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M6X30 | 12 | 11127587919 | $1.08 | Shop at ECS Tuning | ||||
| 07 | Stud bolt | 1 | 11127559969 | $1.30 | Shop at ECS Tuning | |||||
| 08 | Camshaft position sensor | 2 | 13627588095 | Shop at ECS Tuning | ||||||
| 09 | O-ring | 11,1X1,6 | 2 | 13627567572 | $3.11 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M6X18 | 2 | 11437527426 | $0.56 | Shop at ECS Tuning | ||||
| 11 | Emblem adhered | MINI | 1 | 11127594876 | $29.65 | Shop at ECS Tuning | ||||
| 12 | Sleeve | 4 | 11127583585 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio R57 LCI Cooper Cylinder head cover?
- This technical diagram illustrates the Cylinder head cover within the Engine group for the MINI Cabrio R57 LCI Cooper produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Cylinder head cover (Part #11127646554).
- Which models use the hardware listed in this Cylinder head cover?
- The hardware and components featured in the Cylinder head cover are specific to the MINI Cabrio R57 LCI Cooper produced during 2010. These technical specifications ensure that parts like the Cylinder head cover (11127646554) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder head cover assembly?
- Each item in the Cylinder head cover corresponds to the numbered list below the illustration. For the MINI Cabrio R57 LCI Cooper, you can identify the Cylinder head cover by locating its position on the schematic, which then links to the official BMW part number 11127646554 for the Engine section.
