Crankshaft with bearing shells for BMW MINI Cabrio R57 LCI Cooper (2010)

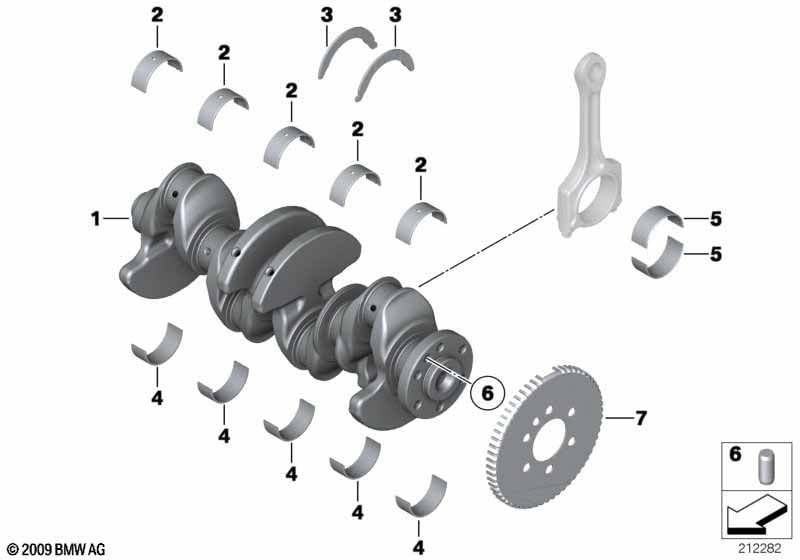

This Crankshaft with bearing shells technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio R57 LCI Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Crankshaft | 1 | 11217561273 | $1364.03 | +core | Shop at ECS Tuning | ||||
| 02 | Bearing shell, black | 45,00MM(0) | 5 | 11217585452 | Shop at ECS Tuning | |||||
| 02 | Bearing shell green | 45,00MM(0) | 5 | 11217585453 | Shop at ECS Tuning | |||||
| 02 | Bearing shell yellow | 45,00MM(0) | 5 | 11217585454 | Shop at ECS Tuning | |||||
| 02 | Bearing shell, orange | 45,00MM(0) | 5 | 11217585455 | Shop at ECS Tuning | |||||
| 02 | Bearing shell, brown | 45,00MM(0) | 5 | 11217605506 | Shop at ECS Tuning | |||||
| 03 | Upper guide washer | 2 | 11217594889 | $24.24 | Shop at ECS Tuning | |||||
| 04 | Bearing shell, black | 45,00MM(0) | 5 | 11217585458 | Shop at ECS Tuning | |||||
| 04 | Bearing shell green | 45,00MM(0) | 5 | 11217585459 | Shop at ECS Tuning | |||||
| 04 | Bearing shell yellow | 45,00MM(0) | 5 | 11217585460 | Shop at ECS Tuning | |||||
| 04 | Bearing shell, orange | 45,00MM(0) | 5 | 11217585461 | Shop at ECS Tuning | |||||
| 04 | Bearing shell, brown | 45,00MM(0) | 5 | 11217605502 | Shop at ECS Tuning | |||||
| 05 | Bearing shell | 45,00MM(0) | 8 | 11247586035 | $33.97 | Shop at ECS Tuning | ||||
| 06 | Dowel pin | 8X15 | 1 | 11227542759 | $2.37 | Shop at ECS Tuning | ||||
| 07 | Impulse sending wheel | 1 | 11227634295 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio R57 LCI Cooper Crankshaft with bearing shells?
- This technical diagram illustrates the Crankshaft with bearing shells within the Engine group for the MINI Cabrio R57 LCI Cooper produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Crankshaft (Part #11217561273).
- Which models use the hardware listed in this Crankshaft with bearing shells?
- The hardware and components featured in the Crankshaft with bearing shells are specific to the MINI Cabrio R57 LCI Cooper produced during 2010. These technical specifications ensure that parts like the Crankshaft (11217561273) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Crankshaft with bearing shells assembly?
- Each item in the Crankshaft with bearing shells corresponds to the numbered list below the illustration. For the MINI Cabrio R57 LCI Cooper, you can identify the Crankshaft by locating its position on the schematic, which then links to the official BMW part number 11217561273 for the Engine section.
