Crankshaft Connecting Rod for BMW MINI Cabrio R57 LCI Cooper (2010)

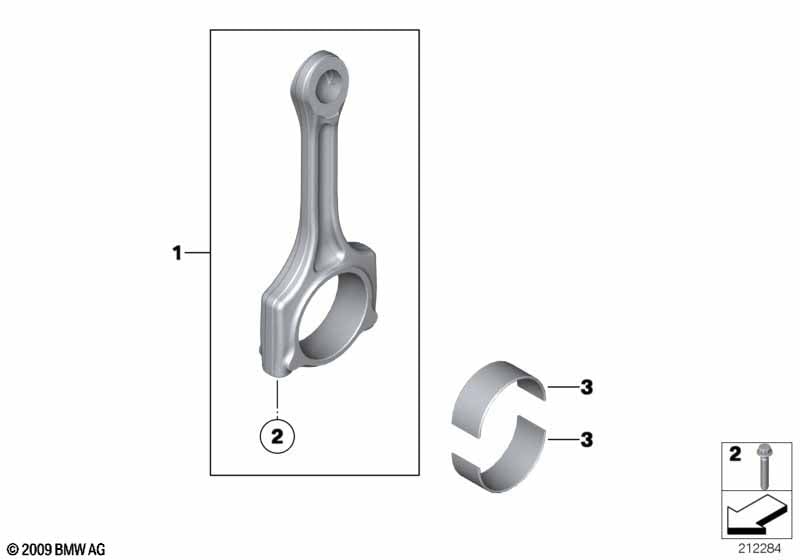

This Crankshaft Connecting Rod technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio R57 LCI Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set connecting rod | L=139,29MM | 1 | 11249894656 | Shop at ECS Tuning | |||||
| Comply with repair instructions! Only suitable for piston rod with designation MDGU12/ MDGU32/ MDGU42 |
||||||||||
| 02 | Connecting rod bolt | M7X37 | 8 | 03/2019 | 11247593922 | Shop at ECS Tuning | ||||
| 03 | Bearing shell | 45,00MM(0) | 8 | 11247586035 | $33.97 | Shop at ECS Tuning | ||||
