Valve timing gear, eccentric shaft for BMW MINI Cabrio R57 LCI Cooper (2010)

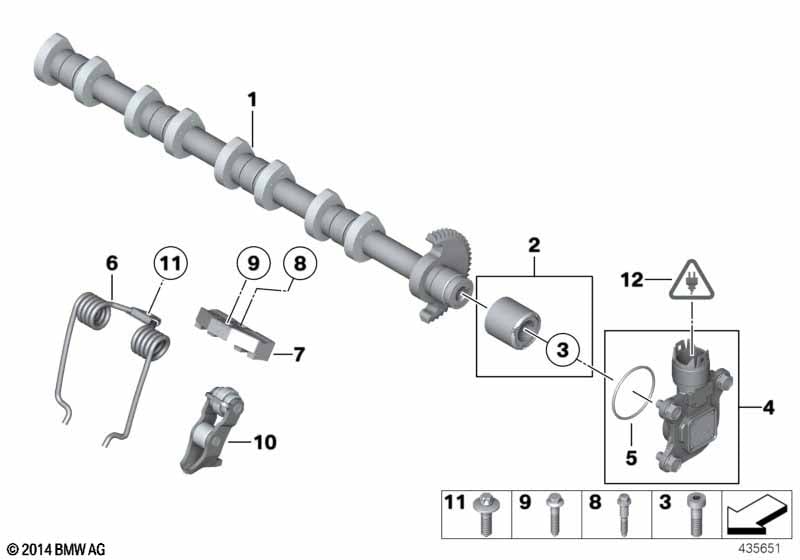

This Valve timing gear, eccentric shaft technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio R57 LCI Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Eccentric shaft | 1 | 11377533888 | $534.22 | Shop at ECS Tuning | |||||
| 02 | Magnetic wheel | 1 | 11377541676 | $50.82 | Shop at ECS Tuning | |||||
| 03 | Fillister-head screw f magnetic wheel | M6X20-A2 | 1 | 07119903465 | $0.74 | Shop at ECS Tuning | ||||
| 04 | Eccentric shaft sensor | 1 | 11377541677 | $367.58 | Shop at ECS Tuning | |||||
| 05 | O-ring | 34,65X1,78 | 1 | 13627567161 | $2.48 | Shop at ECS Tuning | ||||
| 06 | Retainer spring | 4 | 11377533904 | $15.75 | Shop at ECS Tuning | |||||
| 07 | Support | 4 | 11377614723 | Shop at ECS Tuning | ||||||
| 08 | Fit bolt | M6 | 4 | 11377550163 | $1.65 | Shop at ECS Tuning | ||||
| 09 | Collar screw | M6X25 | 4 | 11427527412 | $1.07 | Shop at ECS Tuning | ||||
| 10 | Intermediate lever | "0" | 8 | 11377539966 | $55.08 | Shop at ECS Tuning | ||||
| 10 | Intermediate lever | "1" | 8 | 11377539967 | Shop at ECS Tuning | |||||
| 10 | Intermediate lever | "2" | 8 | 11377539968 | $55.08 | Shop at ECS Tuning | ||||
| 10 | Intermediate lever | "3" | 8 | 11377539969 | $55.08 | Shop at ECS Tuning | ||||
| 10 | Intermediate lever | "4" | 8 | 11377539970 | Shop at ECS Tuning | |||||
| Part deleted, use sets of (8 units) idler levers from Class 4. |
||||||||||
| 10 | Intermediate lever | "5" | 8 | 11377539971 | ENDED | Shop at ECS Tuning | ||||
| 11 | Torx screw | M6X20 | 4 | 11377526812 | $0.77 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
