Crankshaft Connecting Rod for BMW 7 Series E32 730iL (1992)

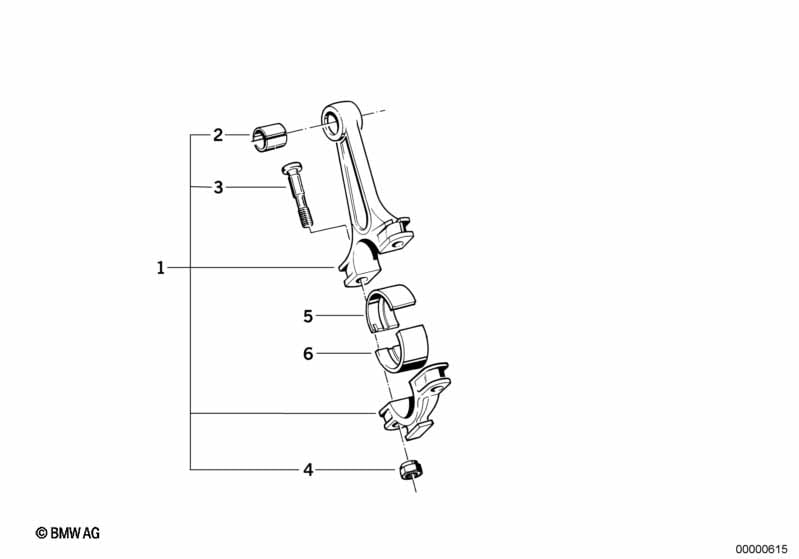

This Crankshaft Connecting Rod technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connecting rod | L=135MM | 6 | 11240618006 | $209.32 | Shop at ECS Tuning | ||||
| 02 | Connecting rod bush | 6 | 11240618100 | $2.47 | Shop at ECS Tuning | |||||
| 03 | Connecting rod bolt | X | 11241719991 | $6.32 | Shop at ECS Tuning | |||||
| 04 | Hex nut | M10X1 | X | 11240518321 | $1.52 | Shop at ECS Tuning | ||||
| 05 | Bearing shell, blue | 48,00MM(0) | 6 | 11241284551 | $10.85 | Shop at ECS Tuning | ||||
| 05 | Bearing shell, blue | 47,75MM(+0,25) | 6 | 11241284553 | $13.27 | Shop at ECS Tuning | ||||
| 05 | Bearing shell, blue | 47,50MM(+0,50) | 6 | 11241284555 | $13.27 | Shop at ECS Tuning | ||||
| 05 | Bearing shell, blue | 47,25MM(+0,75) | 6 | 11241284557 | $10.94 | Shop at ECS Tuning | ||||
| 06 | Bearing shell, red | 48,00MM(0) | 6 | 11241284550 | $10.85 | Shop at ECS Tuning | ||||
| 06 | Bearing shell, red | 47,75MM(+0,25) | 6 | 11241284552 | $13.27 | Shop at ECS Tuning | ||||
| 06 | Bearing shell, red | 47,50MM(+0,50) | 6 | 11241284554 | $13.27 | Shop at ECS Tuning | ||||
| 06 | Bearing shell, red | 47,25MM(+0,75) | 6 | 11241284556 | $13.27 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 730iL Crankshaft Connecting Rod?
- This technical diagram illustrates the Crankshaft Connecting Rod within the Engine group for the 7 Series E32 730iL produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Connecting rod (Part #11240618006).
- Which models use the hardware listed in this Crankshaft Connecting Rod?
- The hardware and components featured in the Crankshaft Connecting Rod are specific to the 7 Series E32 730iL produced during 1992. These technical specifications ensure that parts like the Connecting rod (11240618006) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Crankshaft Connecting Rod assembly?
- Each item in the Crankshaft Connecting Rod corresponds to the numbered list below the illustration. For the 7 Series E32 730iL, you can identify the Connecting rod by locating its position on the schematic, which then links to the official BMW part number 11240618006 for the Engine section.
