Lower timing case for BMW 7 Series E32 730iL (1994)

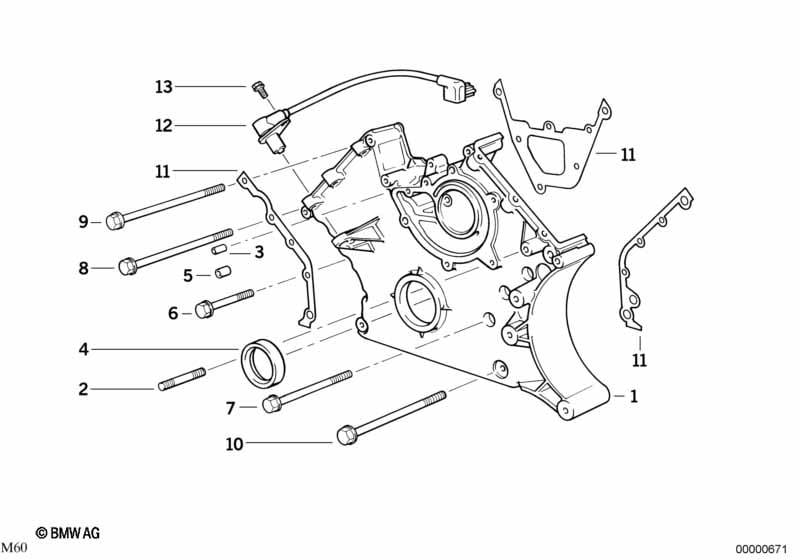

This Lower timing case technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Timing case cover, bottom | 1 | 11141733522 | $264.39 | ENDED | Shop at ECS Tuning | ||||
| 02 | Stud bolt | M8X40 | 1 | 07129903964 | Shop at ECS Tuning | |||||
| 03 | Dowel | D=8,5X9MM | 2 | 11121726242 | $1.07 | Shop at ECS Tuning | ||||
| 04 | Shaft seal | 48X65X10 | 1 | 11141275466 | $24.02 | Shop at ECS Tuning | ||||
| 05 | Dowel | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M6X40 | 4 | 11141731753 | $0.58 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X60-Z1 | 4 | 11141747632 | $0.77 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M6X80-U1-8.8 | 1 | 07119906085 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M6X80-U1-8.8 | 3 | 07119906085 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M8X75-Z1-ZNS3 | 3 | 07119903947 | Shop at ECS Tuning | |||||
| 11 | Gasket set chain case | 1 | 11141436978 | $22.40 | Shop at ECS Tuning | |||||
| 12 | Crankshaft speed sensor | 1 | 12141729292 | Shop at ECS Tuning | ||||||
| 13 | ISA screw | M6X12-8.8-ZNNIV | 1 | 07129905867 | Shop at ECS Tuning |
