Belt Drive Water Pump/Alternator for BMW 7 Series E32 740iL (1994)

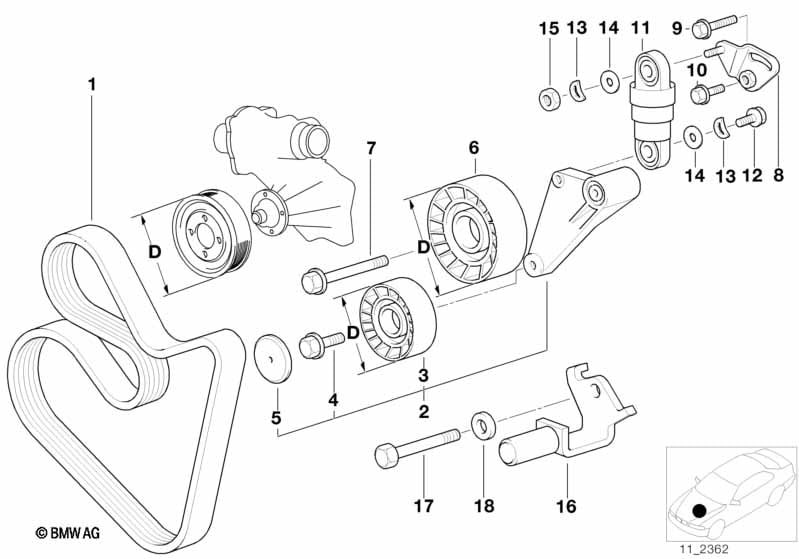

This Belt Drive Water Pump/Alternator technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ribbed v-belt | PK7X1580 | 1 | 11287636367 | Shop at ECS Tuning | |||||
| 02 | Adjusting pulley | 1 | 11281736724 | $138.08 | Shop at ECS Tuning | |||||
| 03 | Idler | D=70MM | 1 | 11281731220 | $78.62 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M8X20-ZNS3 | 1 | 07147165618 | $0.73 | Shop at ECS Tuning | ||||
| 05 | Protection cap adjusting pulley | 1 | 11281727159 | $2.37 | Shop at ECS Tuning | |||||
| 06 | Deflection pulley | D=80MM | 1 | 11281731838 | $46.81 | ENDED | Shop at ECS Tuning | |||
| 07 | Fit bolt | M8X65 | 1 | 07119900236 | $3.00 | Shop at ECS Tuning | ||||
| 08 | Adjust-lever | 1 | 11281747656 | $8.75 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M8X35-Z1 | 1 | 07119901686 | $0.54 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M8X25-Z1 | 1 | 07119901687 | $0.62 | Shop at ECS Tuning | ||||
| 11 | Belt tensioner | 1 | 11281736857 | $91.76 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M8X30 | 1 | 07119913664 | $0.47 | Shop at ECS Tuning | ||||
| 13 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 14 | Washer | 2 | 11281715625 | $0.22 | Shop at ECS Tuning | |||||
| 15 | Hex nut | M8-8-ZNS3 | 1 | 08/1994 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 15 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
