Engine acoustics for BMW 7 Series E32 730i (1994)

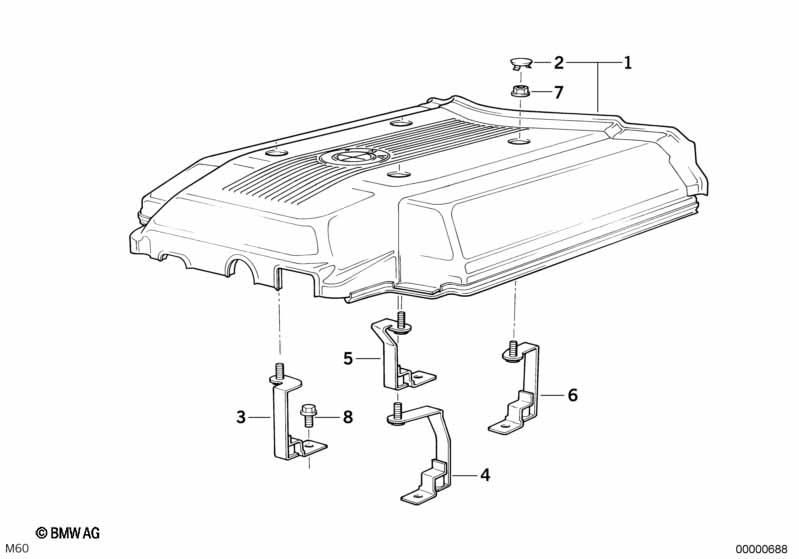

This Engine acoustics technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound protection cap | INCL. DICHTUNG | 1 | 11611747093 | $351.38 | Shop at ECS Tuning | ||||
| 01 | Profile-gasket | ZYL. 1-4 | 1 | 11611747649 | Shop at ECS Tuning | |||||
| 01 | Profile-gasket | ZYL. 5-8 | 1 | 11611747650 | Shop at ECS Tuning | |||||
| 02 | Cover | 4 | 11611747076 | $1.84 | Shop at ECS Tuning | |||||
| 03 | Bracket for intake assembly | 1 | 11611747166 | $16.95 | Shop at ECS Tuning | |||||
| 04 | Bracket front left | 1 | 11611747168 | $16.95 | Shop at ECS Tuning | |||||
| 05 | Bracket rear right | 1 | 11611747167 | $16.95 | Shop at ECS Tuning | |||||
| 06 | Bracket rear left | 1 | 11611747169 | $16.95 | Shop at ECS Tuning | |||||
| 07 | Hex nut with plate | AM6-8-ZNNIV SI | 4 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M6X16-U1-8.8 | 4 | 07119904524 | $0.25 | Shop at ECS Tuning |
