Cylinder Head for BMW 7 Series E32 740iL (1994)

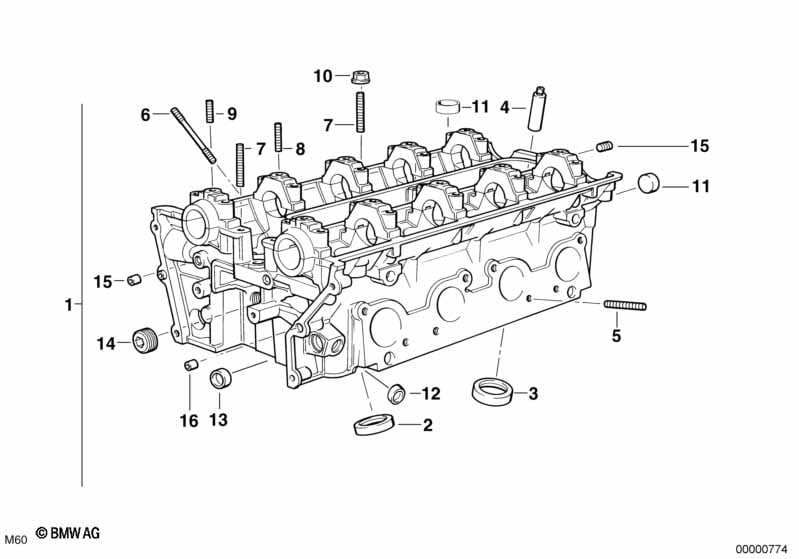

This Cylinder Head technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder Head | ZYL.1-4 | 1 | 11121731910 | $2725.88 | +core | Shop at ECS Tuning | |||
| 01 | Cylinder Head | ZYL.5-8 | 1 | 11121731911 | $2725.88 | +core | Shop at ECS Tuning | |||
| 02 | Valve Seat Ring Intake | 36,50MM(+0,4) | X | 11121731777 | $13.95 | Shop at ECS Tuning | ||||
| 03 | Valve Seat Ring Exhaust | X | 11121722452 | ENDED | Shop at ECS Tuning | |||||
| see service information SIT 843 11 02 88 (valve stem oversize) |
||||||||||
| 04 | Valve Guide | 12,7MM(+0,2) | X | 11121735533 | ENDED, SI 110288843 | Shop at ECS Tuning | ||||
| 05 | Stud bolt | M8X42-10.9-PHR | X | 07129908157 | $0.24 | Shop at ECS Tuning | ||||
| 06 | Stud bolt | M7X70 | X | 07129908098 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Stud bolt | M7X50-10.9-PHR | X | 07129908191 | $0.30 | Shop at ECS Tuning | ||||
| 08 | Stud bolt | M6X30-ZNNIV SI | 6 | 07129904544 | $1.42 | Shop at ECS Tuning | ||||
| 09 | Stud bolt | M6X25-ZN | X | 07129908100 | $0.20 | Shop at ECS Tuning | ||||
| 10 | Flange nut | M7 | X | 11617573839 | $0.33 | Shop at ECS Tuning | ||||
| 11 | Cover lid | 22,0MM | 8 | 11121733403 | $2.15 | Shop at ECS Tuning | ||||
| 12 | Cover lid | 12,0MM | 6 | 11121736330 | $2.15 | Shop at ECS Tuning | ||||
| 13 | Cover lid | 14,0MM | 2 | 01/1994 | 11121704949 | $1.08 | ENDED | Shop at ECS Tuning | ||
| 14 | Screw plug | M26X1,5 | 2 | 07119919033 | $2.70 | Shop at ECS Tuning | ||||
| 15 | Screw plug | M10X1-8.8-ZNNIV | X | 11127539543 | $2.12 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CYLINDER 1-4 | ||||||||||
| 15 | Screw plug | M10X1-8.8-ZNNIV | X | 11127539543 | $2.12 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CYLINDER 5-8 | ||||||||||
| 16 | Dowel | D=8,5X9MM | 4 | 11121726242 | $1.07 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
