Waterpump - Thermostat for BMW 7 Series E32 740i (1994)

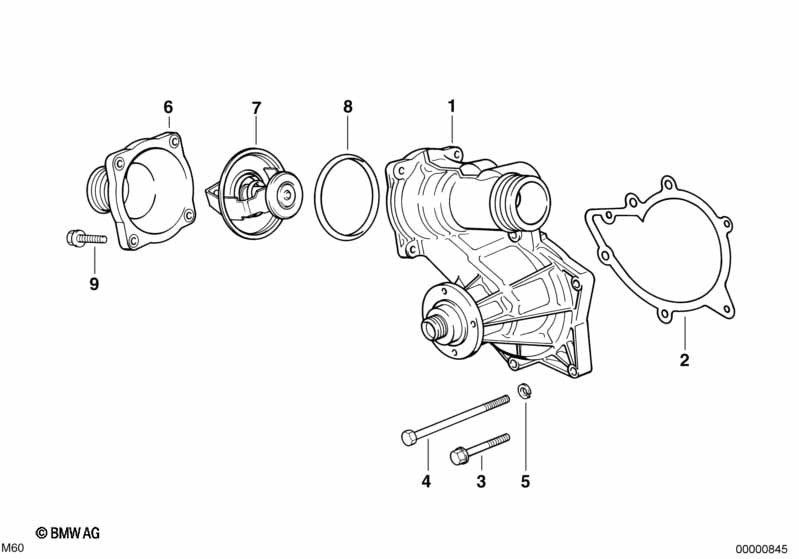

This Waterpump - Thermostat technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Gasket Asbestos Free | 1 | 11511731372 | $4.06 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M6X30-Z3 | 4 | 07119913980 | $0.60 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X100 | 2 | 07119912358 | $0.76 | Shop at ECS Tuning | ||||
| 05 | Wave washer | B6-ZNS3 | 2 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 05 | Spring washer Black | B6-ZN | 2 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Cover | 1 | 11531720173 | $35.63 | Shop at ECS Tuning | |||||
| 07 | Thermostat | 85CEL | 1 | 11531729720 | $113.91 | Shop at ECS Tuning | ||||
| For vehicles with Catalytic converter |
=No |
|||||||||
| 07 | Thermostat | 95CEL | 1 | 11531702279 | $33.24 | Shop at ECS Tuning | ||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 07 | Thermostat | 85CEL | 1 | 11531729720 | $113.91 | Shop at ECS Tuning | ||||
| For vehicles with Hot-climate version and Catalytic converter |
S823A=Yes =No |
|||||||||
| 07 | Thermostat | 95CEL | 1 | 11531702279 | $33.24 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia or Gulf version |
L810A=Yes L822A=Yes |
|||||||||
| 07 | Thermostat | 85CEL | 1 | 11531729720 | $113.91 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia or Gulf version and Catalytic converter |
L810A=Yes L822A=Yes =No |
|||||||||
| 07 | Thermostat | 95CEL | 1 | 11531702279 | $33.24 | Shop at ECS Tuning | ||||
| 08 | Gasket ring | 4,0X76,5MM | 1 | 11511705408 | $4.12 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6X25 | 4 | 11121736603 | $0.65 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
