Engine Block Mounting Parts for BMW 7 Series E32 730iL (1993)

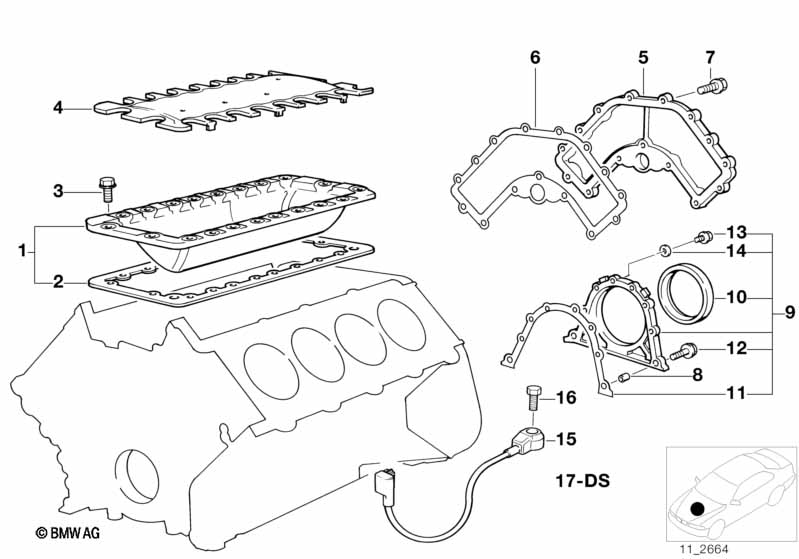

This Engine Block Mounting Parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | cap with seal | 1 | 11141742042 | $76.03 | Shop at ECS Tuning | |||||
| 02 | Gasket Asbestos Free | 1 | 09/1994 | 11141736175 | $11.94 | Shop at ECS Tuning | ||||
| 02 | cap with seal | 1 | 11141742042 | $76.03 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M6X25-ZNNIV SI | X | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 04 | Cover | 1 | 11141736106 | $16.37 | Shop at ECS Tuning | |||||
| 05 | Cover | 1 | 11141729832 | $52.90 | Shop at ECS Tuning | |||||
| 06 | Gasket Asbestos Free | 1 | 11141729836 | $8.31 | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M6X18-U1 | X | 07119905399 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Dowel | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 09 | Set of covers | 1 | 11141745095 | $93.61 | ENDED | Shop at ECS Tuning | ||||
| 10 | Shaft seal | 100X125X13 | 1 | 11141710247 | $64.06 | Shop at ECS Tuning | ||||
| 11 | Gasket Asbestos Free | 1 | 11141736521 | $2.62 | Shop at ECS Tuning | |||||
| 12 | Hex bolt with washer | M8X35-Z3 | 2 | 07119912492 | $0.33 | Shop at ECS Tuning | ||||
| 13 | Hex bolt with washer | M6X35-U1-8.8 | 6 | 07119904589 | $0.47 | Shop at ECS Tuning | ||||
| 13 | Hex bolt with washer | M6X25-ZNNIV SI | 6 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 15 | Ping Sensor | 4 | 04/1993 | 12141702163 | $90.58 | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M8X30 | 4 | 07119913664 | $0.47 | Shop at ECS Tuning | ||||
| 17 | Gasket Set Engine Block Asbesto Free | 1 | 11119070240 | $223.72 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Washer-gasket | 1 | 11141435968 | $2.45 | Shop at ECS Tuning | |||||
