Exhaust manifold for BMW 5 Series E34 518g (1996)

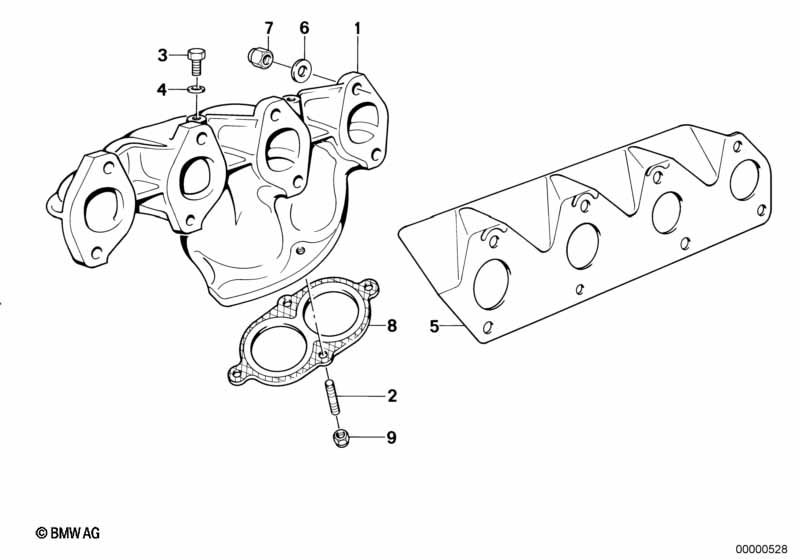

This Exhaust manifold technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 518g. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust manifold | 1 | 11621723892 | $218.74 | ENDED | Shop at ECS Tuning | ||||
| 02 | Stud bolt | M10X35 | 4 | 11621708999 | $2.20 | Shop at ECS Tuning | ||||
| 03 | Screw plug | CM8X1 | 2 | 07119919210 | $2.24 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | D8X11,5-CU | 2 | 07119963045 | $0.47 | Shop at ECS Tuning | ||||
| 05 | Gasket w/heat prot.shield asbestosfree | 1 | 11621743719 | $46.08 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut wiht flange | M8 | 8 | 18307620549 | Shop at ECS Tuning | |||||
| 07 | Hex nut wiht flange | M8 | 8 | 18307620549 | Shop at ECS Tuning | |||||
| 08 | Gasket Asbestos Free | 1 | 18301728208 | $17.66 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut | M10 | 4 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M10 | 4 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
