Exhaust manifold for BMW 5 Series E34 525td (1995)

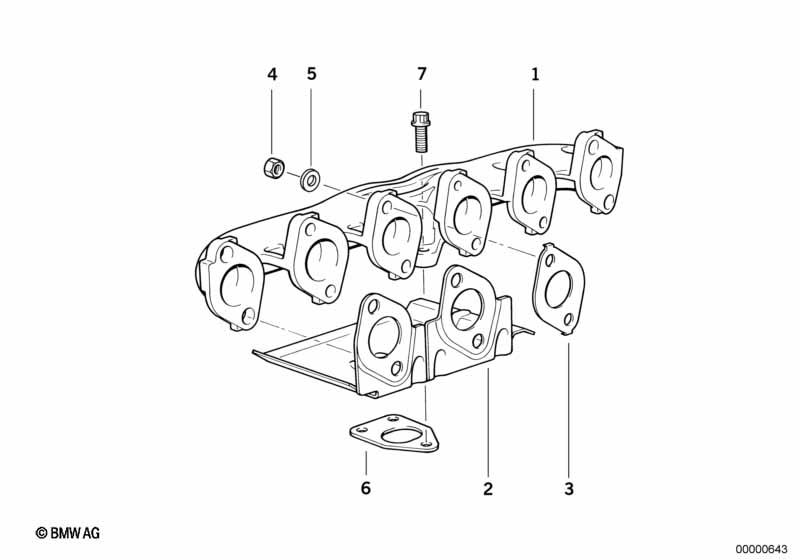

This Exhaust manifold technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Catalytic converter |
=No |
|||||||||
| 01 | Exhaust manifold | 1 | 11622243142 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Catalytic converter or Emission control |
=Yes =Yes |
|||||||||
| 01 | Exhaust manifold | 1 | 09/1992 | 11622244964 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gasket w/heat prot.shield asbestosfree | 1 | 11622247024 | $27.16 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Gasket Steel | 1 | 11622246174 | $4.27 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut wiht flange | M8 | 4 | 18307620549 | Shop at ECS Tuning | |||||
| 03 | Gasket Asbestos Free | 4 | 11622243782 | $10.94 | Shop at ECS Tuning | |||||
| 03 | Gasket Steel | 4 | 11622246174 | $4.27 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Gasket w/heat prot.shield asbestosfree | 1 | 11622247024 | $27.16 | Shop at ECS Tuning | |||||
| 04 | Hex nut wiht flange | M8 | 12 | 18307620549 | Shop at ECS Tuning | |||||
| 05 | Washer | 18X8,4X3 | 12 | 13512243795 | $0.30 | Shop at ECS Tuning | ||||
| 06 | Gasket Asbestos Free | 1 | 11622244515 | $11.90 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Screw | M10X25 | 3 | 11652243402 | $5.37 | Shop at ECS Tuning | ||||
| 07 | Screw | M10X25 | 3 | 11652243402 | $5.37 | Shop at ECS Tuning | ||||
