Lubrication system/Oil pump with drive for BMW 5 Series E34 525i (1995)

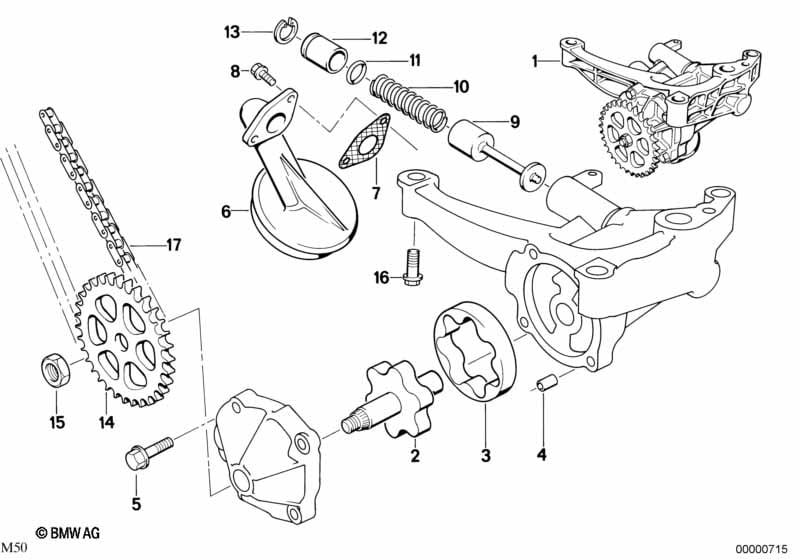

This Lubrication system/Oil pump with drive technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil pump | 1 | 11411740155 | $405.82 | +core | Shop at ECS Tuning | ||||
| 02 | Rotor inner | 1 | 09/1994 | 11411748098 | $36.38 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Oil pump | X | 09/1994 | 11411740155 | $405.82 | +core | Shop at ECS Tuning | |||
| 03 | Rotor,outer | 1 | 09/1994 | 11411748100 | $13.68 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Oil pump | X | 09/1994 | 11411740155 | $405.82 | +core | Shop at ECS Tuning | |||
| 04 | Dowel | 2 | 11411722839 | $1.58 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M6X25-ZNNIV SI | 4 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 06 | Suction pipe | 1 | 11411748150 | $29.81 | Shop at ECS Tuning | |||||
| 07 | Gasket Asbestos Free | 1 | 11411703947 | $2.42 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M6X20 | 2 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 09 | Control valve | 1 | 11411719937 | $36.01 | +core | Shop at ECS Tuning | ||||
| 10 | Coil spring | 1 | 11411706809 | $3.43 | Shop at ECS Tuning | |||||
| 11 | O-ring | 17,0X1,8MM | 1 | 11411722837 | $1.19 | Shop at ECS Tuning | ||||
| 12 | Spacer bush | 1 | 11411722836 | $6.85 | Shop at ECS Tuning | |||||
| 13 | Lock Ring | 21X1 | 1 | 07119934625 | $0.24 | Shop at ECS Tuning | ||||
| 14 | Sprocket | 1 | 11411719935 | $30.94 | ENDED | Shop at ECS Tuning | ||||
| 15 | Hex nut | M10X1-LH | 1 | 07119905857 | $0.36 | Shop at ECS Tuning | ||||
| 16 | Hex bolt with washer | M8X45-Z3 | 3 | 07119912970 | $0.41 | Shop at ECS Tuning | ||||
| 17 | Chain | 1 | 11411719936 | $29.15 | ENDED, SI 110592504 | Shop at ECS Tuning | ||||
| 17 | Chain | 1 | 11417576915 | $30.08 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
