Lubrication system-Oil filter for BMW 5 Series E34 520i (1996)
This Lubrication system-Oil filter technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Aggregate support with oil filter | 1 | 09/1992 | 11421738640 | Shop at ECS Tuning | |||||
| 02 | Set oil-filter element | 1 | 09/1992 | 11421730389 | $12.25 | Shop at ECS Tuning | ||||
| 03 | O-ring | 91X4 | 1 | 09/1992 | 11421741000 | $5.04 | Shop at ECS Tuning | |||
| 04 | Oil filter cover | 1 | 09/1992 | 11421711075 | $26.45 | Shop at ECS Tuning | ||||
| 05 | Screw | 1 | 09/1992 | 11427839820 | $7.07 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | A10X14-ST | 1 | 09/1992 | 07119963080 | $0.82 | Shop at ECS Tuning | |||
| 07 | O-ring | 4,5X1,5 | 1 | 09/1992 | 11421711076 | $0.37 | Shop at ECS Tuning | |||
| 08 | Gasket | 1 | 09/1992 | 11421719855 | $6.08 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M8X50-U1-8.8 | 3 | 09/1992 | 07119904504 | $1.15 | Shop at ECS Tuning | |||
| 10 | Hex bolt with washer | M8X65-Z3 | 2 | 09/1992 | 07119913003 | $0.96 | Shop at ECS Tuning | |||
| 11 | Hex bolt with washer | M8X100-Z3 | 1 | 09/1992 | 07119912574 | $1.78 | Shop at ECS Tuning | |||
| 12 | Gasket ring | A14X20-CUSN | 2 | 09/1992 | 32411093596 | $0.31 | Shop at ECS Tuning | |||
| 12 | Gasket ring | A14X20-ALMG | 2 | 09/1992 | 32411129986 | $0.15 | Shop at ECS Tuning | |||

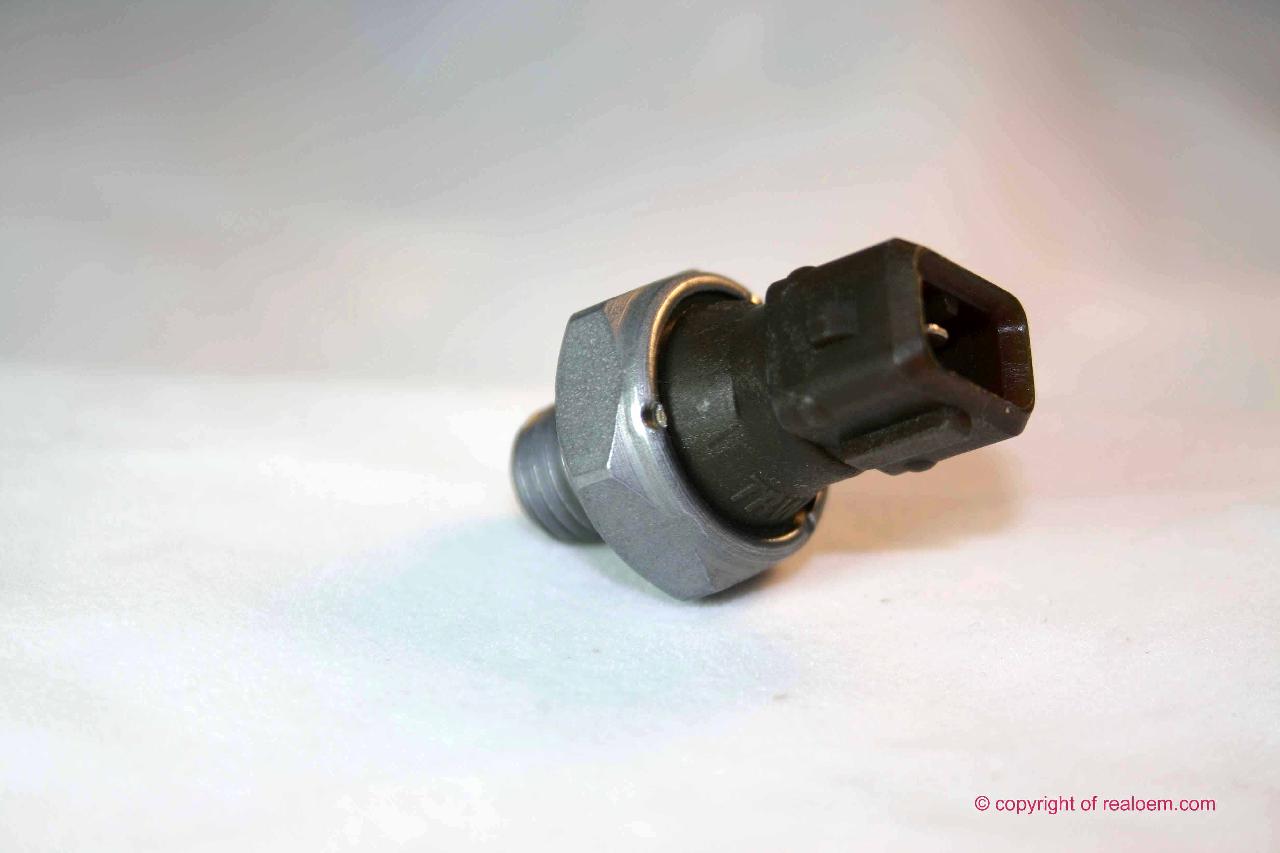

| 14 | Oil pressure switch | M12X1,5 | 1 | 09/1992 | 12617568480 | $11.70 | ENDED, +core | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 520i Lubrication system-Oil filter?
- This technical diagram illustrates the Lubrication system-Oil filter within the Engine group for the 5 Series E34 520i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Aggregate support with oil filter (Part #11421738640).
- Which models use the hardware listed in this Lubrication system-Oil filter?
- The hardware and components featured in the Lubrication system-Oil filter are specific to the 5 Series E34 520i produced during 1996. These technical specifications ensure that parts like the Aggregate support with oil filter (11421738640) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lubrication system-Oil filter assembly?
- Each item in the Lubrication system-Oil filter corresponds to the numbered list below the illustration. For the 5 Series E34 520i, you can identify the Aggregate support with oil filter by locating its position on the schematic, which then links to the official BMW part number 11421738640 for the Engine section.
