Engine block for BMW 5 Series E34 540i (1995)

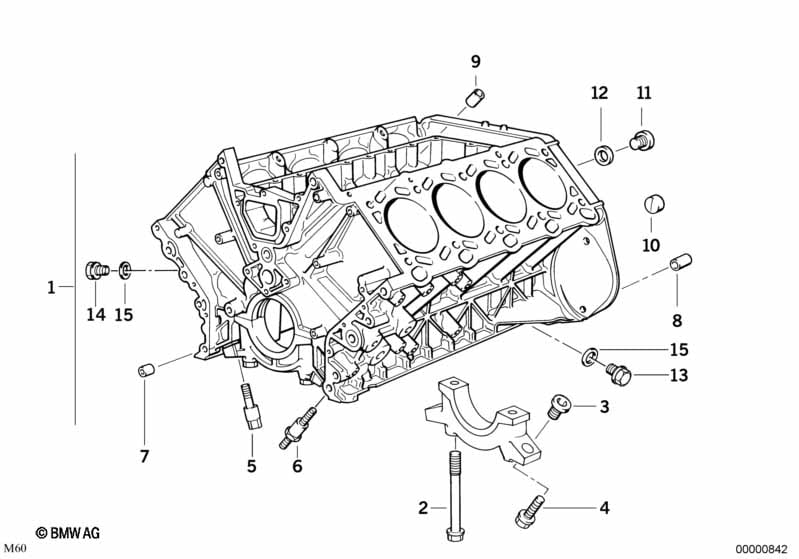

This Engine block technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine block with piston | ALUSIL | 1 | 01/1995 | 11111435283 | $7446.05 | ENDED | Shop at ECS Tuning | ||
| 02 | Collar screw | M10X100 | X | 11111741294 | $2.68 | Shop at ECS Tuning | ||||
| CRANK CASE WITH CAST PART NO. 1 741 212 - 1 742 998 |
||||||||||
| 02 | Collar screw | M11X99 | X | 11117628302 | Shop at ECS Tuning | |||||
| 03 | Spacer bush | X | 11111710132 | $5.27 | Shop at ECS Tuning | |||||
| 04 | Collar screw | M8X31 | X | 11111736005 | $0.77 | Shop at ECS Tuning | ||||
| 05 | Screw | 1 | 11111736059 | $5.13 | Shop at ECS Tuning | |||||
| 06 | Spacer | 2 | 11111747403 | $4.90 | Shop at ECS Tuning | |||||
| 07 | Dowel | D=10,5MM | 4 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 08 | Dowel | D=14,5MM | 2 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 09 | Dowel | D=12,5MM | 4 | 11121726241 | $1.62 | Shop at ECS Tuning | ||||
| 10 | Cover lid | D=15MM | 2 | 07119937230 | $0.59 | Shop at ECS Tuning | ||||
| 11 | Screw plug | M16X1,5 | 4 | 07119902292 | $2.83 | Shop at ECS Tuning | ||||
| 12 | Gasket ring | A16X20-AL | 4 | 07119963252 | $0.57 | Shop at ECS Tuning | ||||
| 13 | Screw plug | M14X1,5-ZNNIV | 1 | 07119904539 | $2.56 | Shop at ECS Tuning | ||||
| 14 | Screw plug | M14X1,5-ZNNIV | 1 | 07119904539 | $2.56 | Shop at ECS Tuning | ||||
| 15 | Gasket ring | A14X20-AL | 2 | 07119963225 | $0.11 | Shop at ECS Tuning | ||||
