Belt Drive Water Pump/Alternator for BMW 5 Series E34 525td (1995)

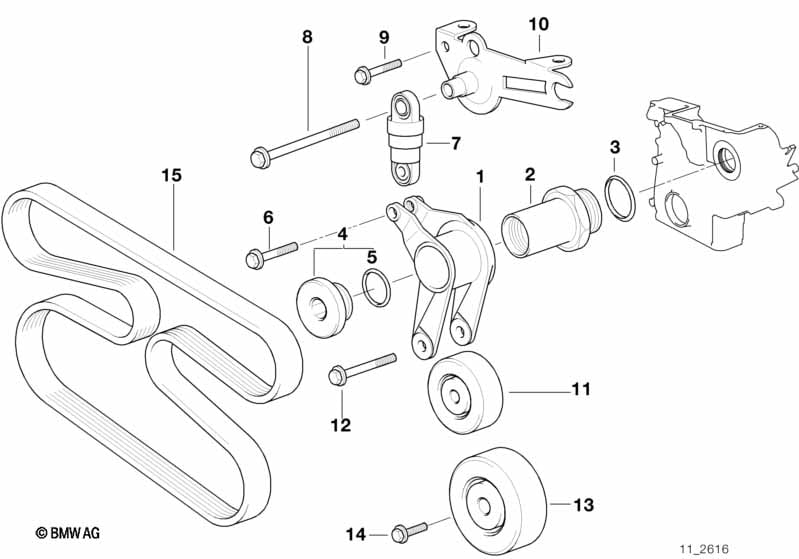

This Belt Drive Water Pump/Alternator technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Deflection lever | 1 | 11287786259 | $41.05 | Shop at ECS Tuning | |||||
| 02 | Bolt | 1 | 11282243506 | $28.13 | Shop at ECS Tuning | |||||
| 03 | O-ring | 35,2X3 | 1 | 13321288696 | $1.88 | Shop at ECS Tuning | ||||
| 04 | Screw plug | M35X2 | 1 | 11282243508 | $12.63 | Shop at ECS Tuning | ||||
| 05 | O-ring | 28X2 | 1 | 11121304174 | $3.25 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M8X35-Z3 | 1 | 07119912492 | $0.33 | Shop at ECS Tuning | ||||
| 07 | Belt tensioner | 1 | 11282248168 | $101.95 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M10X70-Z1 | 1 | 11282246472 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M8X20-Z1 | 1 | 11282246470 | Shop at ECS Tuning | |||||
| 10 | Holder | 1 | 11282245419 | +core | Shop at ECS Tuning | |||||
| 11 | Adjusting pulley | 1 | 11282244754 | $45.97 | Shop at ECS Tuning | |||||
| 12 | Hex bolt with washer | M8X45-8.8-ZNS3 | 1 | 07119903931 | $0.71 | Shop at ECS Tuning | ||||
| 13 | Deflection pulley | 1 | 11282245166 | $46.81 | Shop at ECS Tuning | |||||
| 14 | Hex bolt | M8X25 | 1 | 07119913653 | $0.47 | Shop at ECS Tuning | ||||
| 15 | Ribbed v-belt | PK5 X 1815 | 1 | 11287636375 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
