Lubrication system/Oil pump with drive for BMW 8 Series E31 850Ci (1999)

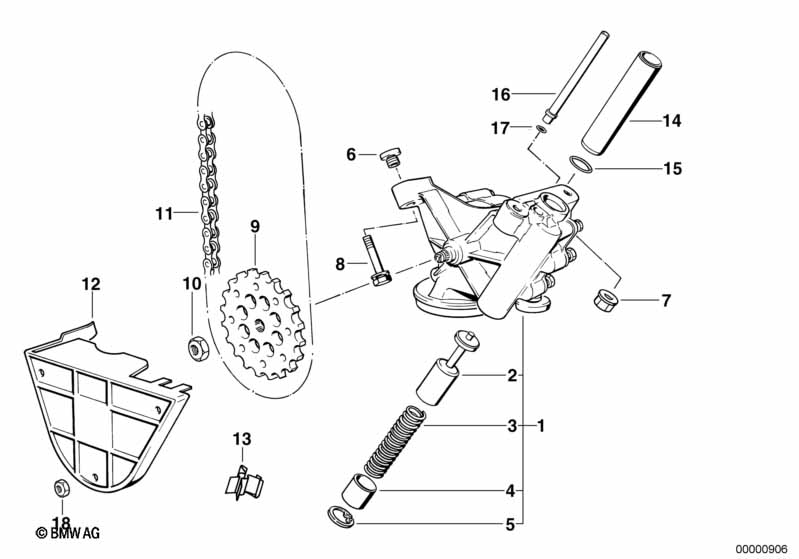

This Lubrication system/Oil pump with drive technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil pump | 1 | 11411438282 | $526.67 | +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Self-locking hex bolt | M8X45-Z1 | 1 | 11417508400 | $1.23 | Shop at ECS Tuning | ||||
| 02 | Piston | 1 | 11411729141 | $10.13 | ENDED | Shop at ECS Tuning | ||||
| 03 | Compression spring | 1 | 11411736790 | $9.86 | Shop at ECS Tuning | |||||
| 04 | Sleeve | 1 | 11411729813 | $1.03 | Shop at ECS Tuning | |||||
| 05 | Lock Ring | 20X1 | 1 | 07119934624 | $1.78 | Shop at ECS Tuning | ||||
| 06 | Guide support | 1 | 11411733963 | $3.37 | Shop at ECS Tuning | |||||
| 07 | Hex nut | 2 | 11411742462 | $0.28 | Shop at ECS Tuning | |||||
| 08 | Self-locking hex bolt | M8X45-Z1 | 1 | 11417508400 | $1.23 | Shop at ECS Tuning | ||||
| 09 | Sprocket | 1 | 11411736294 | $30.94 | Shop at ECS Tuning | |||||
| 10 | Hex nut | M10 | 1 | 11411745258 | $0.48 | ENDED | Shop at ECS Tuning | |||
| 10 | Hex nut | M10 | 1 | 11417549652 | $2.85 | Shop at ECS Tuning | ||||
| 11 | Chain | 1 | 11417577657 | $29.33 | Shop at ECS Tuning | |||||
| 12 | Cover | 1 | 11411742625 | $11.08 | Shop at ECS Tuning | |||||
| 13 | Holder | 1 | 11411736620 | $1.08 | Shop at ECS Tuning | |||||
| 14 | Oil pipe | 1 | 11421736295 | $4.45 | Shop at ECS Tuning | |||||
| 15 | O-ring | 21X2,4MM | 2 | 11421288890 | $1.37 | Shop at ECS Tuning | ||||
| 16 | Oil pipe | 1 | 11421729171 | $4.40 | Shop at ECS Tuning | |||||
| 17 | O-ring | 6,0X2,5 | 1 | 11421713597 | $1.29 | Shop at ECS Tuning | ||||
| 18 | Self-locking hex nut | M6-Z1 | 3 | 07119915702 | $0.28 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
