Emission control-air pump for BMW 5 Series E34 530i (1995)

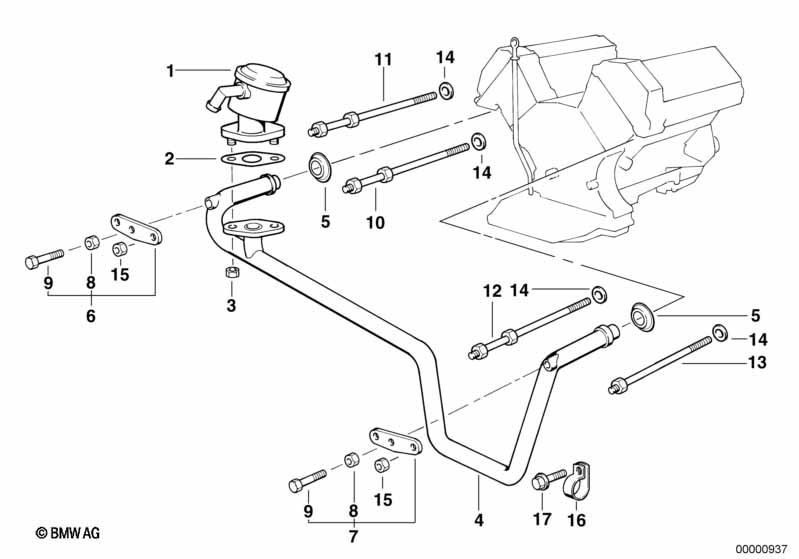

This Emission control-air pump technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Valve | 1 | 10/1994 | 11721704887 | $114.19 | Shop at ECS Tuning | ||||
| 02 | Gasket Asbestos Free | 1 | 10/1994 | 11727505259 | $6.08 | Shop at ECS Tuning | ||||
| 03 | Hex nut with plate | AM6-8-ZNNIV SI | 2 | 10/1994 | 07129904553 | $0.64 | Shop at ECS Tuning | |||
| 04 | Air feed-in pipe | 1 | 10/1994 | 11721742906 | $56.79 | Shop at ECS Tuning | ||||
| 05 | Gasket Steel | 2 | 10/1994 | 11721704904 | $1.19 | Shop at ECS Tuning | ||||
| 06 | Thrust adapter | ZYL.1-4 | 1 | 10/1994 | 11721741325 | $3.91 | Shop at ECS Tuning | |||
| 07 | Thrust adapter | ZYL.5-8 | 1 | 10/1994 | 11721741326 | $2.92 | Shop at ECS Tuning | |||
| 08 | Hex nut | M6-04-2-ZN | 2 | 10/1994 | 07119921054 | $0.11 | Shop at ECS Tuning | |||
| 09 | Hex bolt | M6X28-8.8-ZNS | 2 | 10/1994 | 07119913021 | $2.30 | Shop at ECS Tuning | |||
| 10 | Stud bolt | ZYL.1-4 | 1 | 10/1994 | 11721741320 | $8.28 | Shop at ECS Tuning | |||
| 11 | Stud bolt | ZYL.1-4 | 1 | 10/1994 | 11721741321 | $8.43 | Shop at ECS Tuning | |||
| 12 | Stud bolt | ZYL.5-8 | 1 | 10/1994 | 11721741322 | $8.20 | Shop at ECS Tuning | |||
| 13 | Stud bolt | ZYL.5-8 | 1 | 10/1994 | 11721741323 | $7.48 | Shop at ECS Tuning | |||
| 14 | Washer | A6,4-ZNNIV SI | 4 | 10/1994 | 07119904202 | Shop at ECS Tuning | ||||
| 15 | Hex nut with plate | M6-8-ZNNIV SI | 4 | 10/1994 | 07119905544 | $0.64 | Shop at ECS Tuning | |||
| 16 | Pipe clamp | 1 | 10/1994 | 11721742917 | $1.22 | ENDED | Shop at ECS Tuning | |||
| 17 | Fillister head with washer | M6X16-Z1-8.8 | 1 | 10/1994 | 07119902316 | $2.84 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 530i Emission control-air pump?
- This technical diagram illustrates the Emission control-air pump within the Engine group for the 5 Series E34 530i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Valve (Part #11721704887).
- Which models use the hardware listed in this Emission control-air pump?
- The hardware and components featured in the Emission control-air pump are specific to the 5 Series E34 530i produced during 1995. These technical specifications ensure that parts like the Valve (11721704887) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Emission control-air pump assembly?
- Each item in the Emission control-air pump corresponds to the numbered list below the illustration. For the 5 Series E34 530i, you can identify the Valve by locating its position on the schematic, which then links to the official BMW part number 11721704887 for the Engine section.
