Cylinder Head Attached Parts for BMW 8 Series E31 840i (1995)

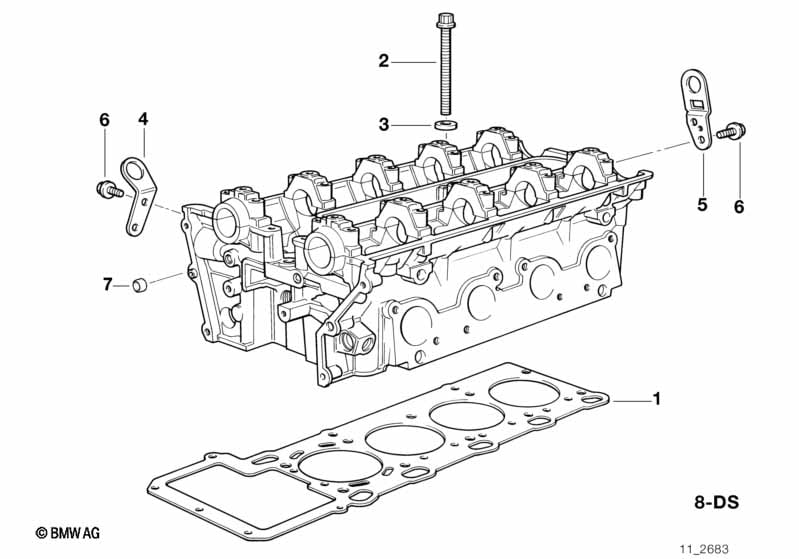

This Cylinder Head Attached Parts technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO CYLINDER 1-4 | ||||||||||
| 01 | Cylinder Head Gasket Asbestos-Free | 1 | 11121736315 | Shop at ECS Tuning | ||||||
| 01 | Cylinder Head Gasket Asbestos-Free | 2,07MM(+0,3) | 1 | 11121736319 | $94.35 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CYLINDER 5-8 | ||||||||||
| 01 | Cylinder Head Gasket Asbestos-Free | 1 | 11121736316 | Shop at ECS Tuning | ||||||
| 01 | Cylinder Head Gasket Asbestos-Free | 2,07MM(+0,3) | 1 | 11121736342 | ENDED | Shop at ECS Tuning | ||||
| 02 | Set Bolt Cylinder Head | M10X110 | 2 | 11127583115 | $37.47 | Shop at ECS Tuning | ||||
| 03 | Washer | X | 11127550856 | $0.65 | Shop at ECS Tuning | |||||
| 04 | Shackle | ZYL.5-8 | 1 | 11121729561 | $4.91 | Shop at ECS Tuning | ||||
| 05 | Shackle | ZYL.1-4 | 1 | 11121729126 | $4.91 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M8X20-Z3 | 4 | 07119913958 | $0.43 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CYLINDER 1-4 | ||||||||||
| 07 | Gasket ring | 8,1X3,5X7,7 | 1 | 11141736758 | $1.71 | Shop at ECS Tuning | ||||
| 08 | Gasket Set Cylinder Head Asbestos Free | 1 | 11121736906 | $384.87 | Shop at ECS Tuning | |||||
| Gasket set without cyl.head gasket | ||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 840i Cylinder Head Attached Parts?
- This technical diagram illustrates the Cylinder Head Attached Parts within the Engine group for the 8 Series E31 840i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Cylinder Head Gasket Asbestos-Free (Part #11121736315).
- Which models use the hardware listed in this Cylinder Head Attached Parts?
- The hardware and components featured in the Cylinder Head Attached Parts are specific to the 8 Series E31 840i produced during 1995. These technical specifications ensure that parts like the Cylinder Head Gasket Asbestos-Free (11121736315) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder Head Attached Parts assembly?
- Each item in the Cylinder Head Attached Parts corresponds to the numbered list below the illustration. For the 8 Series E31 840i, you can identify the Cylinder Head Gasket Asbestos-Free by locating its position on the schematic, which then links to the official BMW part number 11121736315 for the Engine section.
