timing gear timing chain top for BMW 5 Series E34 520i (1993)

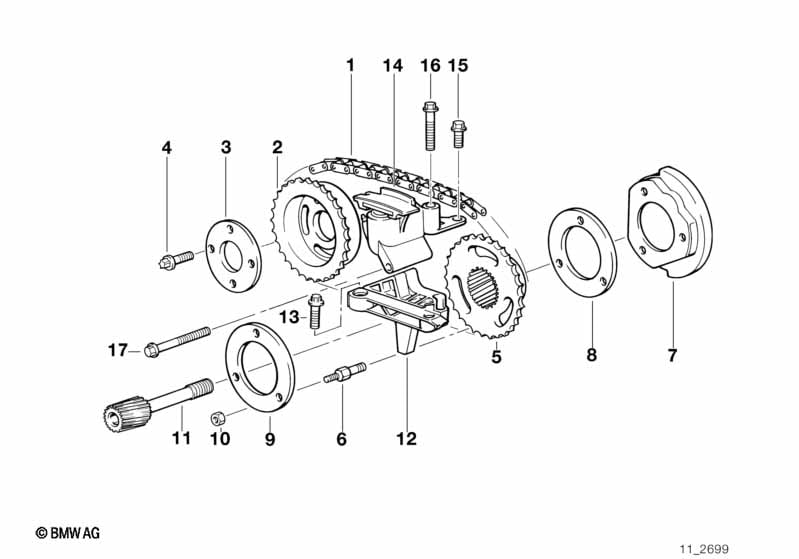

This timing gear timing chain top technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Timing chain | 1 | 01/1993 | 03/1995 | 11311432177 | $43.59 | ENDED | Shop at ECS Tuning | ||
| 02 | Sprocket | 1 | 01/1993 | 03/1995 | 11311735144 | $34.19 | Shop at ECS Tuning | |||
| 03 | Washer | 1 | 01/1993 | 03/1995 | 11311735145 | $1.25 | Shop at ECS Tuning | |||
| 04 | Torx bolt | 4 | 01/1993 | 03/1995 | 11311735164 | $0.43 | Shop at ECS Tuning | |||
| 05 | Sprocket | 1 | 01/1993 | 03/1995 | 11361738470 | $44.97 | Shop at ECS Tuning | |||
| 06 | Stud bolt | 3 | 01/1993 | 03/1995 | 11361735909 | ENDED | Shop at ECS Tuning | |||
| 06 | Stud bolt | 3 | 01/1993 | 03/1995 | 11361403824 | $4.50 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Diaphragm spring | 1 | 01/1993 | 03/1995 | 11361403550 | $5.40 | Shop at ECS Tuning | |||
| -- | Stop disk | T=2MM | 1 | 01/1993 | 03/1995 | 11361403822 | $49.94 | Shop at ECS Tuning | ||
| -- | Stop disk | T=4MM | 1 | 01/1993 | 03/1995 | 11361403823 | $16.11 | Shop at ECS Tuning | ||
| 07 | Impulse sending wheel | 1 | 01/1993 | 03/1995 | 11311437827 | $11.15 | ENDED | Shop at ECS Tuning | ||
| 08 | Stop disk | 1 | 01/1993 | 03/1995 | 11361735908 | $10.70 | Shop at ECS Tuning | |||
| 09 | Stop disk | 1 | 01/1993 | 03/1995 | 11361735908 | $10.70 | Shop at ECS Tuning | |||
| 09 | Stop disk | T=2MM | 3 | 01/1993 | 03/1995 | 11361403822 | $49.94 | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Diaphragm spring | 1 | 01/1993 | 03/1995 | 11361403550 | $5.40 | Shop at ECS Tuning | |||
| -- | Stop disk | T=4MM | 1 | 01/1993 | 03/1995 | 11361403823 | $16.11 | Shop at ECS Tuning | ||
| -- | Stud bolt | 1 | 01/1993 | 03/1995 | 11361403824 | $4.50 | Shop at ECS Tuning | |||
| 10 | Hex nut | M6-10-PHR | 3 | 01/1993 | 03/1995 | 07119900910 | $0.20 | Shop at ECS Tuning | ||
| 11 | Shaft | 1 | 01/1993 | 03/1995 | 11361738468 | $106.21 | Shop at ECS Tuning | |||
| 12 | Guide rail | 1 | 01/1993 | 03/1995 | 11311722651 | $21.22 | Shop at ECS Tuning | |||
| 13 | Torx bolt | M6X20 | 2 | 01/1993 | 03/1995 | 11311736326 | $0.57 | Shop at ECS Tuning | ||
| 14 | Chain tensioner | 1 | 01/1993 | 03/1995 | 11311738700 | $72.93 | ENDED | Shop at ECS Tuning | ||
| 15 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 01/1993 | 03/1995 | 07119904524 | $0.25 | Shop at ECS Tuning | ||
| 16 | Hex bolt with washer | M6X40-Z1-ZNS | 2 | 01/1993 | 03/1995 | 07119901799 | $3.39 | ENDED | Shop at ECS Tuning | |
| 17 | Hex bolt with washer | M6X55-Z1 | 1 | 01/1993 | 03/1995 | 07119904526 | $0.56 | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
