Belt Drive Water Pump/Alternator for BMW 1 Series F20 118i (2015)

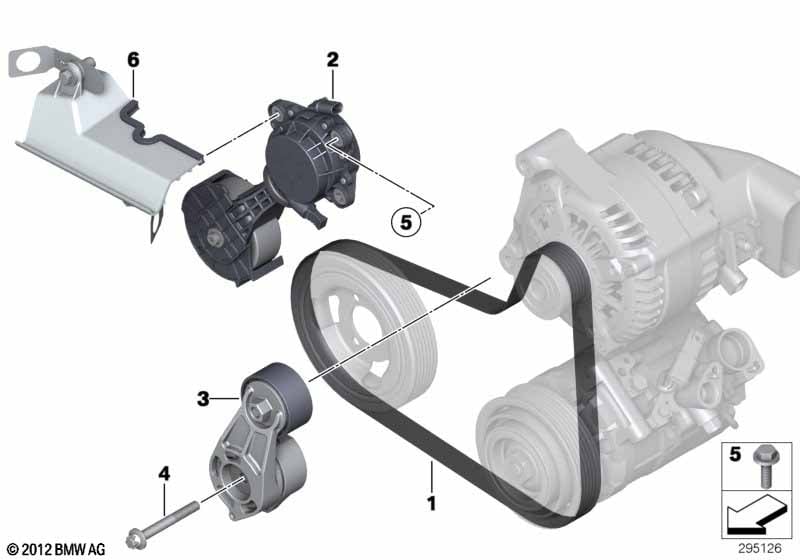

This Belt Drive Water Pump/Alternator technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ribbed v-belt | 6PK X 987 | 1 | 11287603348 | Shop at ECS Tuning | |||||
| 02 | Friction wheel | 1 | 11287598832 | Shop at ECS Tuning | ||||||
| 03 | Mechanical belt tensioner | 1 | 11287603347 | Shop at ECS Tuning | ||||||
| 04 | ASA-Bolt | M8X65 | 1 | 07119907009 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | 3 | 11287562369 | $0.72 | Shop at ECS Tuning | |||||
| For vehicles with Cold-climate version |
S842A=Yes |
|||||||||
| 05 | Hex bolt with washer | 2 | 11287562369 | $0.72 | Shop at ECS Tuning | |||||
| 06 | Guard cover | 1 | 07/2014 | 11287635798 | Shop at ECS Tuning | |||||
