Short engine for BMW MINI Clubman F54 Cooper (2019)

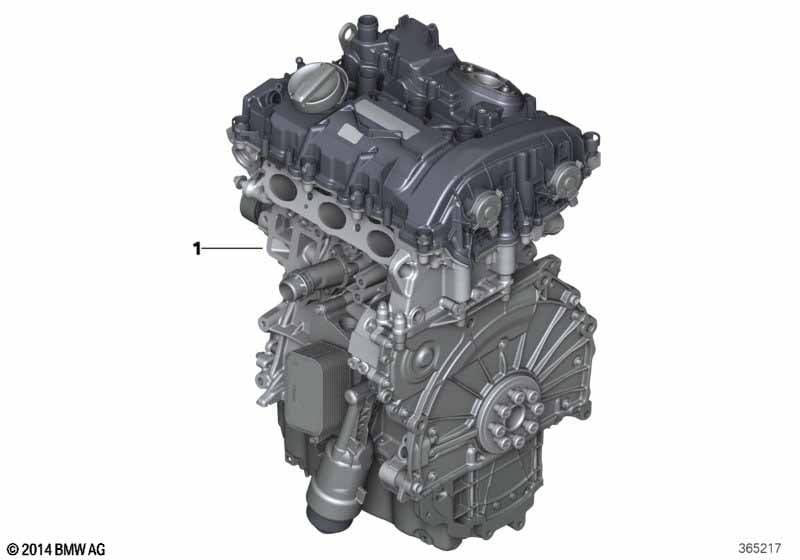

This Short engine technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Hot-climate version |
S823A=No |
|||||||||
| 01 | RP engine | B38A15A | 1 | 07/2017 | 11002455307 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Cover | 1 | 07/2017 | 17128604579 | Shop at ECS Tuning | |||||
| -- | Cam follower | 1 | 07/2017 | 11327601233 | +core | Shop at ECS Tuning | ||||
| -- | Reluctor | 1 | 07/2017 | 11148605104 | Shop at ECS Tuning | |||||
| -- | Dowel pin | 4X16MM | 2 | 07/2017 | 07119942082 | Shop at ECS Tuning | ||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 01 | Short engine | B38A15A | 1 | 07/2017 | 11000003076 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Cover | 1 | 07/2017 | 17128604579 | Shop at ECS Tuning | |||||
| -- | Cam follower | 1 | 07/2017 | 11327601233 | +core | Shop at ECS Tuning | ||||
| -- | Reluctor | 1 | 07/2017 | 11148605104 | Shop at ECS Tuning | |||||
| -- | Dowel pin | 4X16MM | 1 | 07/2017 | 07119942082 | Shop at ECS Tuning | ||||
| 01 | RP engine | B38A15A | 1 | 07/2017 | 11002455308 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Cover | 1 | 07/2017 | 17128604579 | Shop at ECS Tuning | |||||
| -- | Cam follower | 1 | 07/2017 | 11327601233 | +core | Shop at ECS Tuning | ||||
| -- | Reluctor | 1 | 07/2017 | 11148605104 | Shop at ECS Tuning | |||||
| -- | Dowel pin | 4X16MM | 2 | 07/2017 | 07119942082 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Clubman F54 Cooper Short engine?
- This technical diagram illustrates the Short engine within the Engine group for the MINI Clubman F54 Cooper produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the RP engine (Part #11002455307).
- Which models use the hardware listed in this Short engine?
- The hardware and components featured in the Short engine are specific to the MINI Clubman F54 Cooper produced during 2019. These technical specifications ensure that parts like the RP engine (11002455307) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Short engine assembly?
- Each item in the Short engine corresponds to the numbered list below the illustration. For the MINI Clubman F54 Cooper, you can identify the RP engine by locating its position on the schematic, which then links to the official BMW part number 11002455307 for the Engine section.
