Cylinder head cover/Mounting parts for BMW MINI Cabrio F57 JCW (2018)

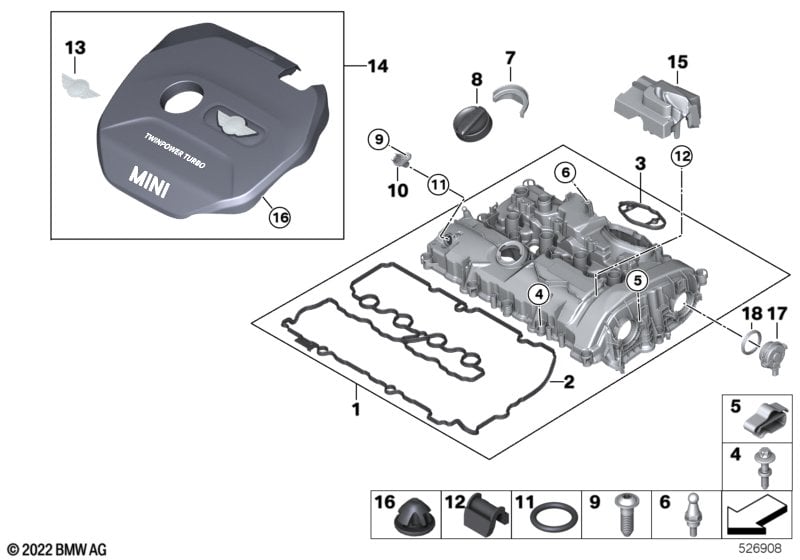

This Cylinder head cover/Mounting parts technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder head cover | 1 | 11127611278 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Isa screw with washer | M6X25-U1 | 2 | 13517632572 | Shop at ECS Tuning | |||||
| -- | Profile-gasket | 1 | 11128618520 | Shop at ECS Tuning | ||||||
| 02 | Profile seal for cylinder head cover | 1 | 11128618519 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Isa screw with washer | M6X25-U1 | 2 | 13517632572 | Shop at ECS Tuning | |||||
| -- | Profile-gasket | 1 | 11128618520 | Shop at ECS Tuning | ||||||
| 03 | Profile-gasket | 1 | 11128618520 | Shop at ECS Tuning | ||||||
| 04 | Collar screw | M6X30 | 15 | 11129454322 | Shop at ECS Tuning | |||||
| 05 | Fixing clamp | 4 | 11128642177 | Shop at ECS Tuning | ||||||
| 06 | Retaining pin | 1 | 11127643221 | Shop at ECS Tuning | ||||||
| 07 | Drip protection | 1 | 11128602238 | Shop at ECS Tuning | ||||||
| 08 | Cap for oil filler | 1 | 11128655331 | Shop at ECS Tuning | ||||||
| 09 | Torx-bolt for plastic material | TS5X20 | 2 | 07119907480 | Shop at ECS Tuning | |||||
| 10 | Camshaft position sensor | 2 | 13627633958 | Shop at ECS Tuning | ||||||
| 11 | O-ring | 18,2X2,5 | 2 | 13628658854 | Shop at ECS Tuning | |||||
| 12 | Damper rubber | 1 | 13537639983 | Shop at ECS Tuning | ||||||
| 13 | Emblem adhered | MINI | 1 | 11127594876 | $29.65 | Shop at ECS Tuning | ||||
| 14 | Cover, acoustic | 1 | 11128601635 | Shop at ECS Tuning | ||||||
| 15 | Cover for high-pressure pump | 1 | 03/2020 | 11128638458 | Shop at ECS Tuning | |||||
| 15 | Cover for high-pressure pump | 1 | 11145A0C420 | Shop at ECS Tuning | ||||||
| 16 | Bump stop | 4 | 11127614138 | Shop at ECS Tuning | ||||||
| 17 | Actuator, VANOS | 2 | 11367614288 | Shop at ECS Tuning | ||||||
| 18 | Seal | 2 | 11365A65AB5 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio F57 JCW Cylinder head cover/Mounting parts?
- This technical diagram illustrates the Cylinder head cover/Mounting parts within the Engine group for the MINI Cabrio F57 JCW produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Cylinder head cover (Part #11127611278).
- Which models use the hardware listed in this Cylinder head cover/Mounting parts?
- The hardware and components featured in the Cylinder head cover/Mounting parts are specific to the MINI Cabrio F57 JCW produced during 2018. These technical specifications ensure that parts like the Cylinder head cover (11127611278) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder head cover/Mounting parts assembly?
- Each item in the Cylinder head cover/Mounting parts corresponds to the numbered list below the illustration. For the MINI Cabrio F57 JCW, you can identify the Cylinder head cover by locating its position on the schematic, which then links to the official BMW part number 11127611278 for the Engine section.
