Cylinder Head for BMW MINI Cabrio F57 Cooper (2018)

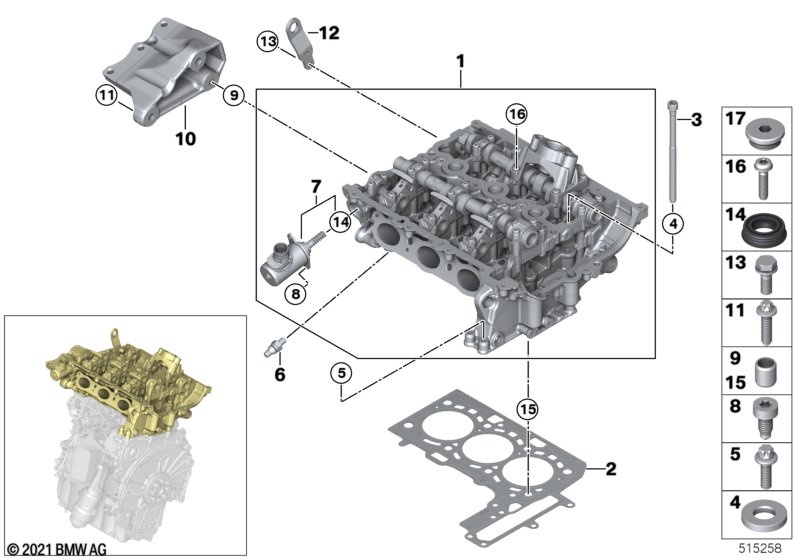

This Cylinder Head technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| !!! Attention !!! Observe PuMA measure 62634754! ATTENTION Observe SI M11 08 16 |
||||||||||
| 01 | Cylinder head with valve gear | 1 | 01/2017 | 11122118965 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Dowel pin | 4X16MM | 2 | 01/2017 | 07119942082 | Shop at ECS Tuning | ||||
| For vehicles with Hot-climate version !!! Attention !!! Observe PuMA measure 62634754! ATTENTION Observe SI M11 08 16 |
S823A=Yes |
|||||||||
| 01 | Cylinder head with valve gear | 1 | 08/2015 | 11128482775 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Dowel pin | 4X16MM | 2 | 08/2015 | 07119942082 | Shop at ECS Tuning | ||||
| 02 | Cylinder Head Gasket Asbestos-Free | 0,70MM | 1 | 07/2015 | 11128630683 | Shop at ECS Tuning | ||||
| 02 | Cylinder Head Gasket Asbestos-Free | 1,00MM (+0,3) | 1 | 07/2015 | 11128630684 | Shop at ECS Tuning | ||||
| 03 | Cylinder head bolt | M11X188 | 8 | 11128644674 | Shop at ECS Tuning | |||||
| 04 | Washer | 8 | 11127583138 | $6.05 | Shop at ECS Tuning | |||||
| 05 | ASA-Bolt | M8X40 | 5 | 07119907475 | Shop at ECS Tuning | |||||
| 06 | Air-discharge fitting with O-ring | 1 | 11128626622 | Shop at ECS Tuning | ||||||
| 07 | Actuator | 1 | 11378652738 | Shop at ECS Tuning | ||||||
| 08 | ISA screw | M6X16-8.8-ZNNIV | 2 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 09 | Dowel | D=12,5MM | 2 | 11121726241 | $1.62 | Shop at ECS Tuning | ||||
| 10 | Engine supporting bracket, right | 1 | 11128511299 | Shop at ECS Tuning | ||||||
| 11 | Star-socket screw | M10X45 | 3 | 07119908277 | Shop at ECS Tuning | |||||
| 12 | Loop | 1 | 11127638711 | Shop at ECS Tuning | ||||||
| 13 | Hex bolt with washer | M8X22 | 2 | 07119905739 | $0.62 | Shop at ECS Tuning | ||||
| 14 | Shaft seal | 1 | 11378662525 | Shop at ECS Tuning | ||||||
| 15 | Dowel | D=14,5MM | 4 | 11112245180 | $1.65 | Shop at ECS Tuning | ||||
| Attention! Observe repair manual.Changed tightening process. |
||||||||||
| 16 | Countersunk screw | M6X35-8.8 | 18 | 07119907886 | Shop at ECS Tuning | |||||
| 16 | Countersunk screw | M6X35-10.9 | 15 | 07119909683 | Shop at ECS Tuning | |||||
