Cylinder Head for BMW MINI Cabrio R57 LCI Cooper (2010)

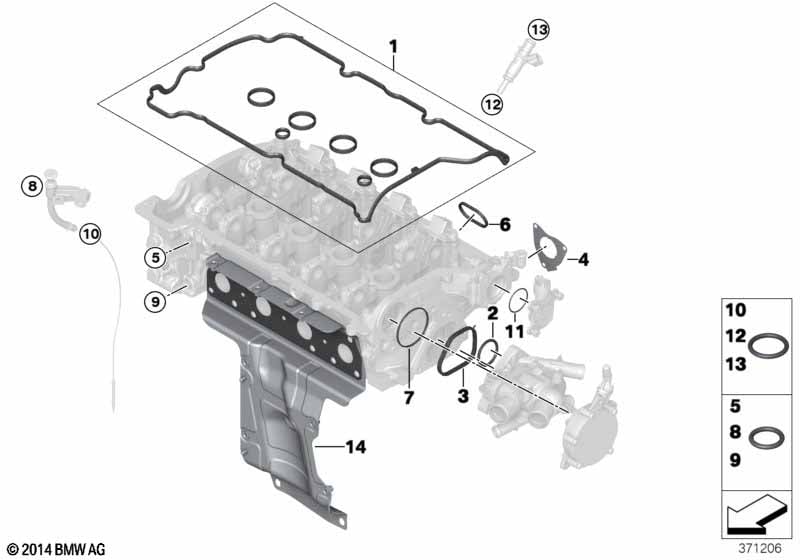

This Cylinder Head technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio R57 LCI Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set of profile gaskets | 1 | 11127567877 | $41.12 | Shop at ECS Tuning | |||||
| 02 | O-ring | 1 | 11518613804 | Shop at ECS Tuning | ||||||
| 03 | Profile-gasket | 1 | 11518613803 | Shop at ECS Tuning | ||||||
| 04 | Gasket Steel | 1 | 11127560273 | $3.62 | Shop at ECS Tuning | |||||
| 05 | O-ring | 14X1,78 | 2 | 11367534776 | $1.19 | Shop at ECS Tuning | ||||
| 06 | Profile-gasket | 4 | 11617528173 | $2.38 | Shop at ECS Tuning | |||||
| 07 | Gasket ring | 1 | 11667610690 | Shop at ECS Tuning | ||||||
| 08 | O-ring | 9X2,2 | 1 | 11437560212 | $5.73 | Shop at ECS Tuning | ||||
| 09 | O-ring | 9,5X2,5MM | 2 | 11367507729 | $2.92 | Shop at ECS Tuning | ||||
| 10 | O-ring | 9,5X2 | 1 | 11437560211 | $5.73 | Shop at ECS Tuning | ||||
| 11 | O-ring | 34,65X1,78 | 1 | 13627567161 | $2.48 | Shop at ECS Tuning | ||||
| 12 | O-ring | 7,52X3,52 | 4 | 13641437487 | $3.75 | Shop at ECS Tuning | ||||
| 13 | O-ring | 8,54X3,10 | 4 | 13647531313 | $3.75 | Shop at ECS Tuning | ||||
| 14 | Heat shield with gasket | 1 | 18407563111 | $47.11 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio R57 LCI Cooper Cylinder Head?
- This technical diagram illustrates the Cylinder Head within the Engine group for the MINI Cabrio R57 LCI Cooper produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Set of profile gaskets (Part #11127567877).
- Which models use the hardware listed in this Cylinder Head?
- The hardware and components featured in the Cylinder Head are specific to the MINI Cabrio R57 LCI Cooper produced during 2010. These technical specifications ensure that parts like the Set of profile gaskets (11127567877) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder Head assembly?
- Each item in the Cylinder Head corresponds to the numbered list below the illustration. For the MINI Cabrio R57 LCI Cooper, you can identify the Set of profile gaskets by locating its position on the schematic, which then links to the official BMW part number 11127567877 for the Engine section.
