Waterpump - Thermostat for BMW 4 Series F82 M4 M4 (2017)

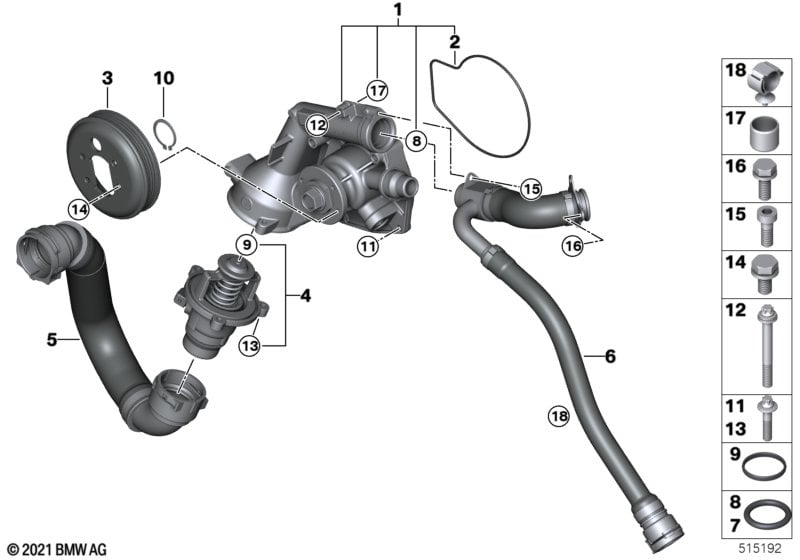

This Waterpump - Thermostat technical drawing provides a detailed breakdown of the assembly for the 4 Series F82 M4 M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Coolant pump, mechanical | 1 | 11517846361 | Shop at ECS Tuning | ||||||
| 02 | Preformed seal | 1 | 11517848520 | Shop at ECS Tuning | ||||||
| 03 | Pulley | 1 | 11517848523 | Shop at ECS Tuning | ||||||
| 04 | Thermostat | 1 | 11537586885 | $102.25 | Shop at ECS Tuning | |||||
| 05 | Hose from radiator bottom - thermostat | 1 | 11537848502 | Shop at ECS Tuning | ||||||
| 06 | Line from coolant pump-cylinder head | 1 | 11537848500 | Shop at ECS Tuning | ||||||
| 07 | O-ring | 29X2,9 | 1 | 11537545278 | $6.08 | Shop at ECS Tuning | ||||
| 08 | O-ring | 30X3 | 1 | 11517854564 | Shop at ECS Tuning | |||||
| 09 | Gasket ring | 1 | 11538632664 | Shop at ECS Tuning | ||||||
| 10 | Lock Ring | 28X1,5 | 1 | 07119907340 | Shop at ECS Tuning | |||||
| 11 | Star-socket screw | BM6X25-U1-8.8 | 2 | 07119907490 | Shop at ECS Tuning | |||||
| 12 | ASA bolt with washer | M6X52-U1-ZNNIV | 2 | 07129907128 | Shop at ECS Tuning | |||||
| 13 | Star-socket screw | BM6X25-U1-8.8 | 3 | 07119907490 | Shop at ECS Tuning | |||||
| 14 | Hex bolt with washer | M6X12-U1-8.8 | 4 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 15 | ISA screw | M6X16-8.8-ZNNIV | 1 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 16 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 17 | Dowel | D=8MM / L=6,3MM | 1 | 06/2023 | 11417505190 | $5.53 | Shop at ECS Tuning | |||
| 17 | Dowel | 1 | 11411722839 | $1.58 | Shop at ECS Tuning | |||||
| 18 | Hose clamp | 1 | 11537599270 | Shop at ECS Tuning |
